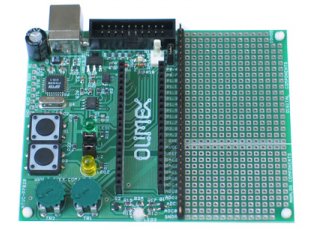

ADuC-M7020 is complementary board for ADuC-H7020 which allow better to be explored ADuC7020 features without the need for additional soldering as this board provide USB-RS232 converter for link with PC, two buttons, potentiometers, status LEDs so you can play with ADuC-H7020 out of the box.

FEATURES:

• DIL socket for ADuC-H7020 plug-in
• JTAG connector for in-circuit programming and debugging with ARM-JTAG
• two buttons
• two potentiometers connected to ADCs
• bi-color LED connected to DACs
• two status LEDs (yellow/green)
• Dallas i-button interface and connector
• USB-RS232 convertor and interface to ADuC7020, can be used for serial download
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Separate Analog and Digital prototype area
• four mounting holes 3.3 mm (0.13")

• ADUC-M7020.pdf users manual

HARDWARE:

• ADuC-M7020 schematic

• RS232 init demo code for EW-ARM
• buttons read demo code for EW-ARM
• ADC read DAC write demo code for EW-ARM

ORDERING CODES:
		ADuC-M7020 Completely assembled and tested (works with ADuC-H7020 which must buy separately)
