MAXQ-H2000
MAXQ2000-RAX header board
| Price | 17.95 EUR |
|---|---|
| 10 - 49 pcs | 16.16 EUR |
| 50 - 10000 pcs | 14.36 EUR |
FEATURES
- MCU: MAX2000-RAX up to 20 Mhz( single clock per instruction i.e. up to 20MIPS), low power 190 uA @ 8Mhz, power supply 1.8-2.5V, 16 bit microcontroller with 64 KB Flash (10K re-programming cycles), 2KB RAM, 3x 16bit Timers, 2x UART, 1x SPI, 1-wire, build-in driver for 132 segment LCD
- JTAG connector
- 20 Mhz (on socket) and 32 768 Hz oscillator crystal
- Two on-board power supply voltage regulators supplying +2.5V to core and +3.3V to GPIOs
- PWR_JTAG allow board to be power supplied by the JTAG (if MAXQ-JTAG-USB is used)
- Power supply filtering capacitors
- Extension headers for each uC pin on 0.1" row header
- PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
- Dimensions: 47x47 mm (1.8x1.8")
- Space between the pin rows: 43.18 mm (1.7")
HARDWARE

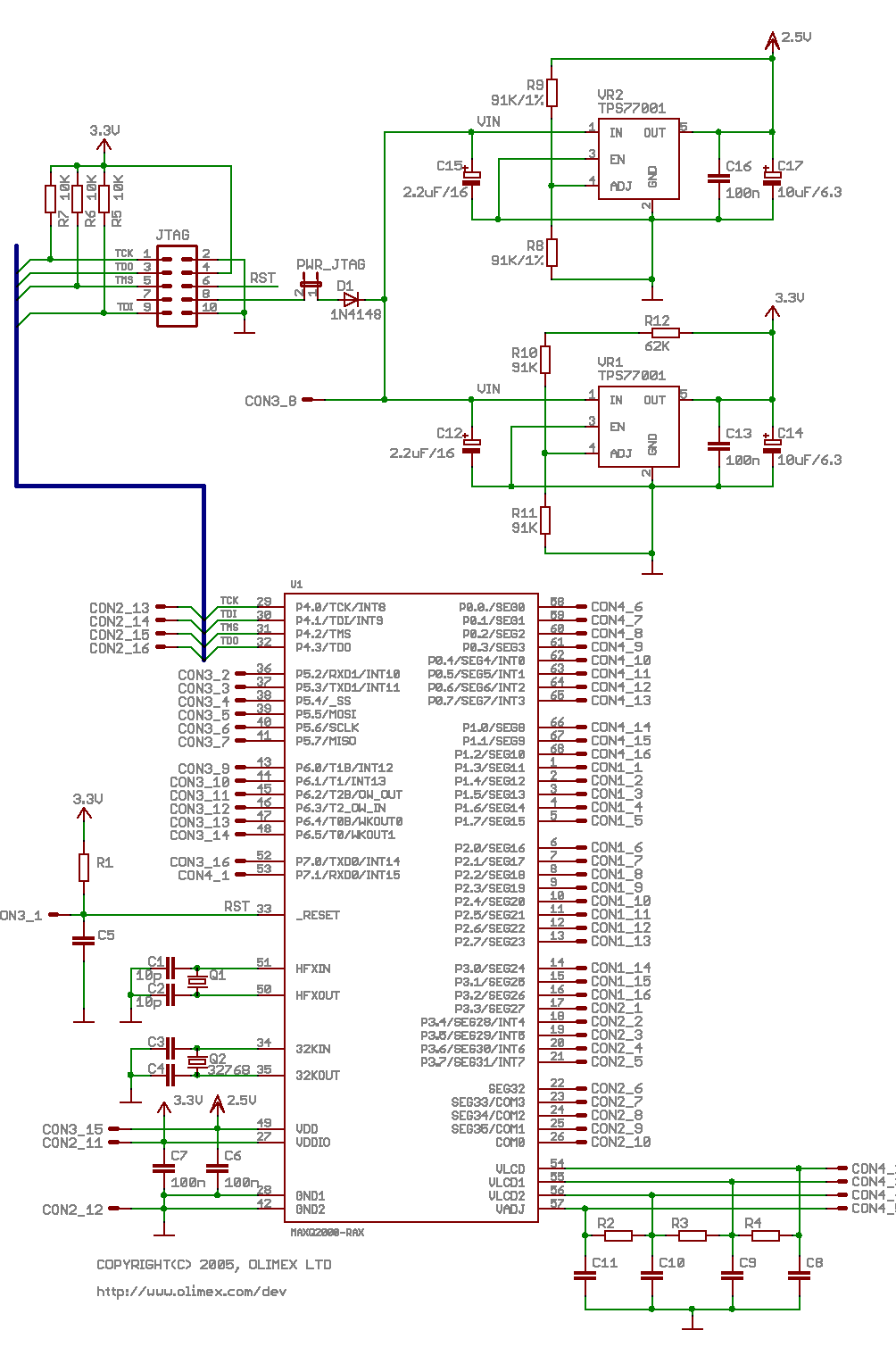

- MAXQ-H2000 Schematic
- MAXQ JTAG connector (TOP view)
