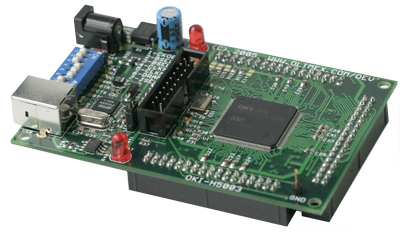

OKI-H5003 HEADER BOARD FOR OKI ML67Q5003 MICROCONTROLLER
FEATURES:
- MCU: ML67Q5003 ARM7TDMI 16/32-bit RISC CPU, 512KB internal Flash,
32KB internal SRAM, 8KB cache memory, Built-in external memory controller
supports external SRAM, SDRAM, EDO DRAM, Flash, 28 interrupt sources, DMA:
2 channels with external access, Timers: 7 16-bit timers, Watch-Dog Timer:
dual stage 16 bit, PWM: Two 16-bit channels, Serial Interfaces: SIO, UART,
USART, I2C, GPIO: 42 bits, A/D Converter: Four 10-bit channels, Built-in boot
ROM accommodates in-circuit Flash ROM re-programming and field-updates
- SDRAM 16MB (8MB x 16bit) 7.5 ns / 166Mhz (allows to run uclinux)
- Flash 8MB (4MB x16 bit) 80 ns (enough to store uclinux boot image)
- SRAM 512KB (256KB x16 bit) 10 ns
- 7.5 Mhz crystal oscillator (PLL=4 60Mhz)
- JTAG connector
- USB-RS232 convertor
- status LED
- RESET supervisor IC and button
- EXTENSION IDC34 connectors for all uC ports
- USB-RS232 converter connected to UART0
- power supply can be from USB port or external
- power supply LED
- 8 position slide switch for uC configuration
- PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component
print
- Dimensions 100x65 mm (3.9 x 2.5 ")
DOCUMENTS:
HARDWARE:
SOFTWARE:
ORDERING CODES:
OKI-H5003 Completely assembled and tested with ML67Q5003 microcontroller
