PIC-IO
Development board for 18 pin PIC microcontrollers
| Price | 10.95 EUR |
|---|---|
| 10 - 49 pcs | 9.86 EUR |
| 50 - 10000 pcs | 8.76 EUR |
FEATURES
- ICSP programming connector, 6-pin 0.1" step (compatbile with Olimex PIC-KIT3 and any Microchip programmers)
- Power plug-in jack for +12V DC power supply
- Voltage regulator +5V and filtering capacitors
- Status LED connected to RB5
- Quartz crystal oscillator circuit 20Mhz
- DIL18 microcontroller socket
- RS232 DB9 female connector
- RS232 interface circuit with Tx, Rx signals
- 4 optocoupler isolated inputs with screw terminals
- Input status LEDs
- 4 relay outputs with 10A/250VAC contacts with screw terminals
- Output status LEDs
- Six mounting holes
- FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
- Dimensions: (100 x 80)mm ~ (3.9 x 3.15)"
DOCUMENTS
- PIC-IO.pdf - PIC-IO user's manual revision C
- PIC-IO tutorial (English)
- PIC-IO tutorial (Spanish)
- PIC-IO European Declaration of Conformity
- PIC-IO UKCA Declaration of Conformity
HARDWARE
- PIC-IO schematic and revision changes

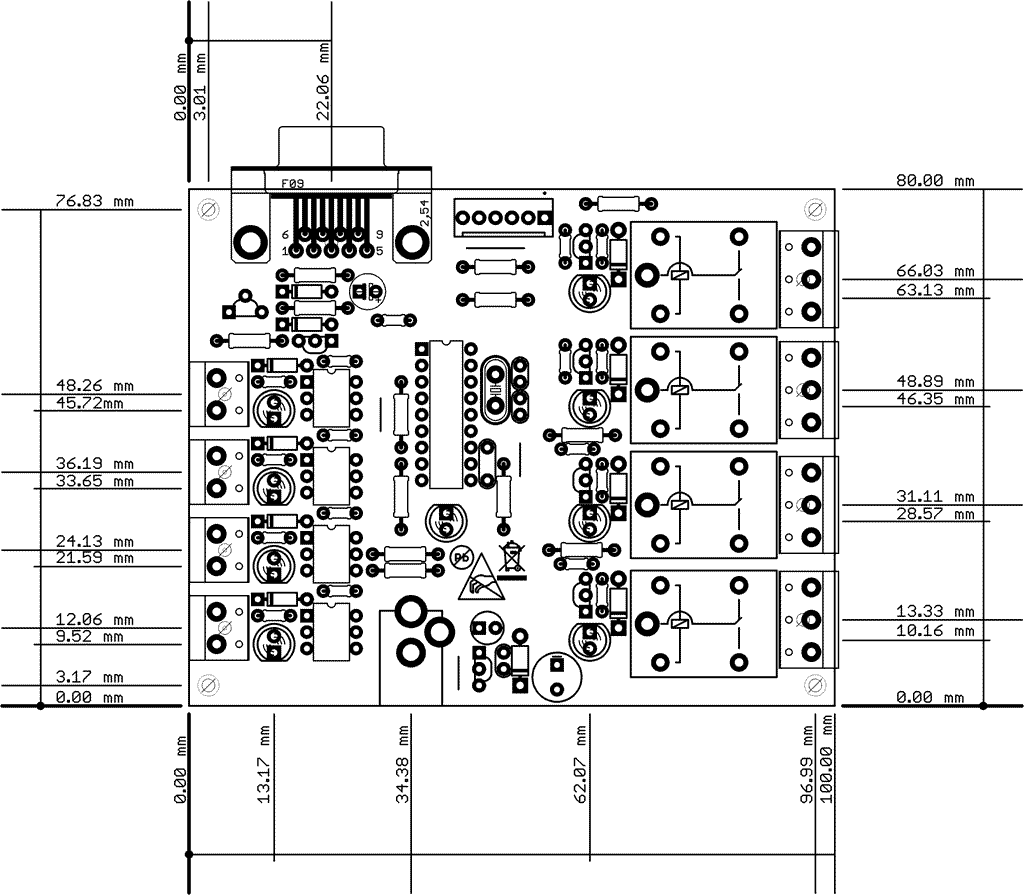

- PIC-IO dimensions
- PIC ICSP connector
