INTRODUCTION:

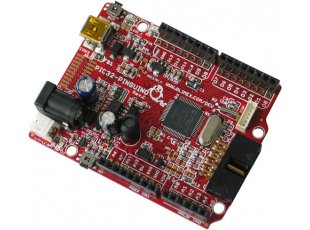

ARDUINO like board with PIC32MX440F256H with USB OTG

FEATURES:

• PIC32MX440F256H 80 Mhz microcontroller 256KB Flash 32KB RAM
• DCDC power supply allow power supply voltage from 9 to 30V DC thus making possible to take virtually any power supply adapter on the market, also enable application which are in industrial power supply 24VDC.
• carefully selected all components to work reliable in INDUSTIRAL temperature range -25+85C so the board can be used in INDUSTIRAL applications.
• ULTRA LOW POWER voltage regulators and the consumption is only few microamps, which enables handheld and battery powered applications.
• Li-Ion rechargable battery power supply option with BUILD-IN on board charger, so when you attach battery it is automatically charged and kept in this state until the other power source (USB or external adapter) is removed and it AUTOMATICALLY will power the board - no jumpers, no switches!
• microSD card for data logging
• UEXT connector which allow many existing modules like RF, ZIGBEE, GSM, GPS to be connected
• allow RTC - Real Time Clock.
• NOISE IMMUNE design.
• Optionally if someone need higher precision and temperature stability in Analog reading we have provision on the board for Aref preciese source.
• the LEDs and the BUTTONs are on the edge of the board so there is easy access even if the boards have shields on them
• all components are LOWER than the connectors, so the shields do not interference with them
• mini USB connector is used which is common and used in most cell phones, so you do not have to buy other cables
• original Arduino design had flaw and the connectors were not spaced at 0.1" this make perfo board use impossible, to keep the compatibility we have same spacing but we add next to this connector on 0.1" which customer can use with perforated boards
• all signals on the connectors are printed on top and on bottom of the board, so when you check with probe you know exactly which port you are measuring
• 4 mount holes make board attachment easier
• miniICSP connector 0.05"step if you do not want to use Pinguino IDE and want to program this board with PIC-ICD2-POCKET or PIC-KIT3 you should use also PIC-ICSP convertor board, same apply for Microchip programmers.

DOCUMENTS:

• PIC32-PINGUINO-OTG.pdf - User manual

HARDWARE:

• PIC32-PINGUINO-OTG REV.D schematic in PDF format
• PIC32-PINGUINO-OTG REV.D schematic in Eagle format released under Creative Commons Attribution-Share Alike 3.0 United States License
• PIC32-PINGUINO-OTG REV.D board in Eagle format released under Creative Commons Attribution-Share Alike 3.0 United States License

WARNING:

Do not use "programmer-to-go" button when there is no image on the OLIMEX PIC-KIT3 or MICROCHIP PIC-KIT3 or that might put your microcontroller in an inrecoverable state. We have tested the mentioned scenario and we can confirm it destroys PIC32 chips (using both our and the original Microchip PICKIT3). We don't take responsibility if you brick your chip that way. For more info check the following: www.microchip.com/forums/m635420.aspx.

SOFTWARE:

• PINGUINO IDE INSTALLATION on Windows
• PINGUINO IDE Linux installation script
• PIC32-PINGUINO with SHIELD-EKG-EMG example (refer to the readme and the comments in the code for more info)
• PIC32-PINGUINO-OTG with MOD-BT command recognition example (refer to the readme and the comments in the code for more info)
• PIC32-PINGUINO-OTG with MOD-GSM call recognition example (refer to the readme and the comments in the code for more info)
• PIC32-PINGUINO-OTG with MOD-GSM send receive SMS example (refer to the readme and the comments in the code for more info)
• PIC32-PINGUINO with MOD-ZIGBEE-PIR and MOD-ZIGBEE movement sensor example (refer to the readme and the comments in the code for more info)

ORDERING CODES:
		PIC32-PINGUINO completely assembled and tested
