SAM9-L9261
Development board for AT91SAM9261 microcontroller
Price | 159.96 EUR |
---|---|
10 - 49 pcs | 143.96 EUR |
50 - 10000 pcs | 127.97 EUR |
SAM9-L9261 is a development platform with ARM9 microcontroller, TFT LCD 3.5" 320x240 pixels with TOUCHSCREEN, 64MB SDRAM and 512MB NAND Flash. The board has an Ethernet 100Mbit controller, a USB host, a USB device, RS232 and a 40 pin extension port with all unused SAM9261 ports available for add-on boards. SAM9-L9261 have waste amount of Flash and RAM and runs Linux, WindowsCE and other RTOS natively. RTC clock is backup with 3V Li battery.
FEATURES
- MCU: AT91SAM9261 16/32 bit ARM9™ 180MHz operation
- Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
- TFT LCD 3.5" 320x240 pixels with TOUCH SCREEN supported by Windows CE 6.0
- 64 MB SDRAM
- 512MB NAND Flash (seen in Linux as silicon drive)
- Ethernet 100Mbit connector
- USB host and USB device connectors
- RS232 interface and drivers
- SD/MMC card connector
- One user button and one reset button
- One power and two status LEDs
- On board voltage regulator 3.3V with up to 800mA current
- Single power supply: 5V DC required
- Power supply filtering capacitor
- 18.432 Mhz crystal
- Extension header
- PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print

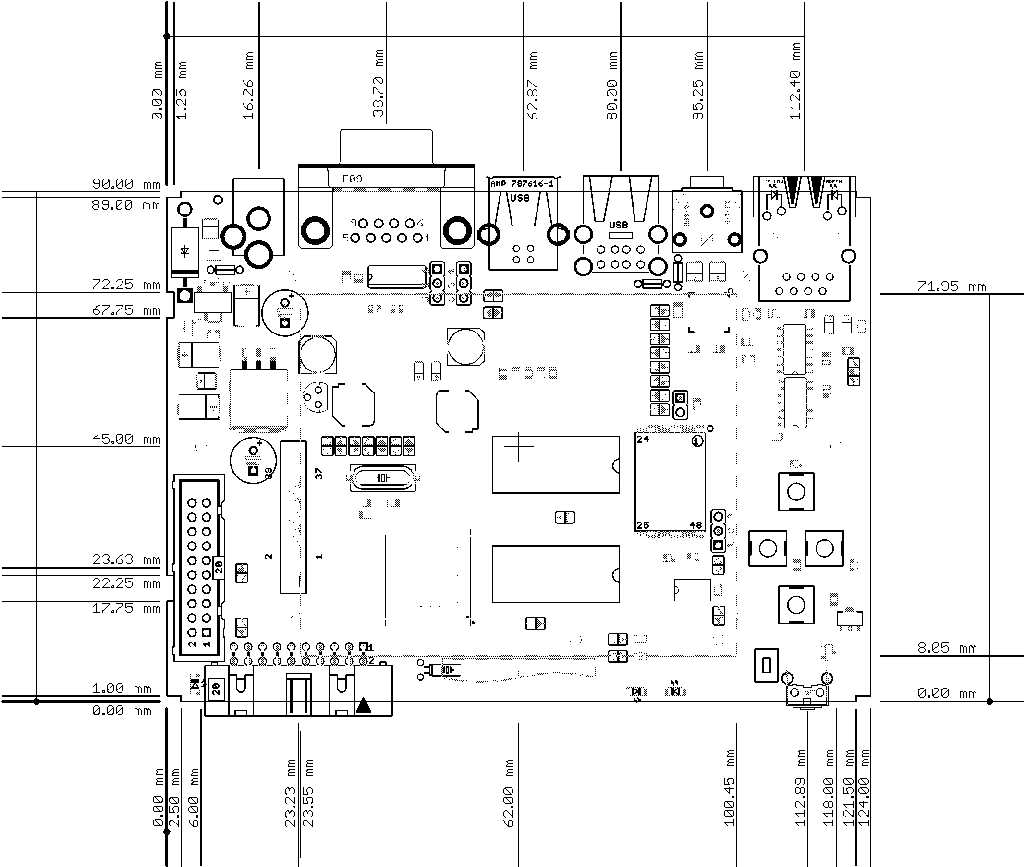

- Dimensions: 100 x 80 mm (3.94 x 3.15")
HARDWARE
SOFTWARE
- Linux 2.6 source and binaries on CD image (in .nrg image format): SAM9-L9261.iso
- evtest.tgz, fbtest.tgs Simple Linux examples for SAM9-L9261
- linux-2.31-rc8-olimex-patches.zip Linux kernel patches for SAM9-L9260 and SAM9-L9261. Also includes T.V.R.Prasad's kernel driver for SAM9-L9260 and MOD-NOKIA6610.
- u-boot-olimex-patches-20090717.tgz U-Boot patches for SAM9-L9260 and SAM9-L9261.
- util-linux and RTC patch, contributed by Martin Hermsen
