USB-ISO LOW/FULL SPEED USB ISOLATOR 1000VDC FOR PROTECTING YOUR PC OR LAPTOP WHILE CONNECTING USB DEVICES WIRED TO HIGH VOLTAGES

INFO:

USB-ISO is USB Low/Full speed USB 2.0 compliant port isolator with 1000V isolation voltage. This device is very useful as protects your PC computer USB host from overvoltages, ESD shock, it provides 1000VDC isolation and this way you can connect to your PC programmers and debuggers which work directly with targets at high voltages like 220V mains power supply etc. Even if your target is not connected to high voltage, USB-ISO is additional protection for your valuable computer, laptop etc. equipment.

FEATURES:

• USB isolation 1000VDC between USB host and USB device
• Fully USB 2.0 Compliant
• Low and full speed data rate: 1.5 Mbps and 12 Mbps
• Bidirectional communication
• Short-circuit protection for xD+ and xD- lines
• Class 3A contact ESD performance per ANSI/ESD STM5.1-2007
• High common-mode transient immunity: >25 kV/µs
• USB_DEVICE connector- which is USB-A type and have to be connected to the PC USB host.
• USB_HOST connector which is USB-B type and have to be connected to the USB device like USB JTAG, programmer, debugger etc
• Power Jack for external power supply with +8-15VDC, note this power jack is not isolated from the USB_HOST connector
• DC-DC converter supply isolated voltage to the USB_HOST from the USB_DEVICE if no external power supply is present
• dimensions 41.5x36.5 mm (1.634x1.437")

DOCUMENTS:

• USB-ISO.pdf - User manual

HARDWARE:

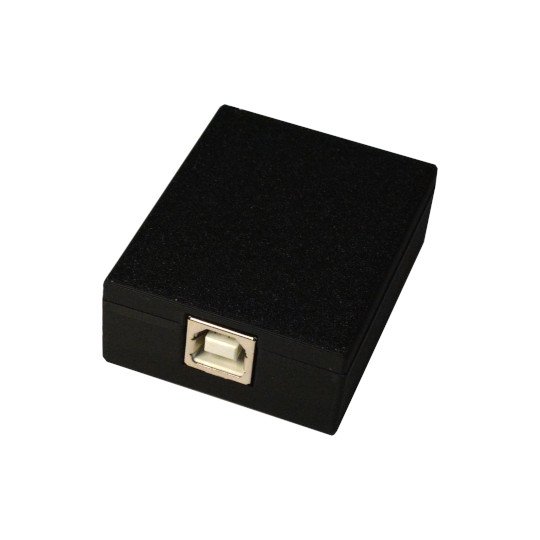

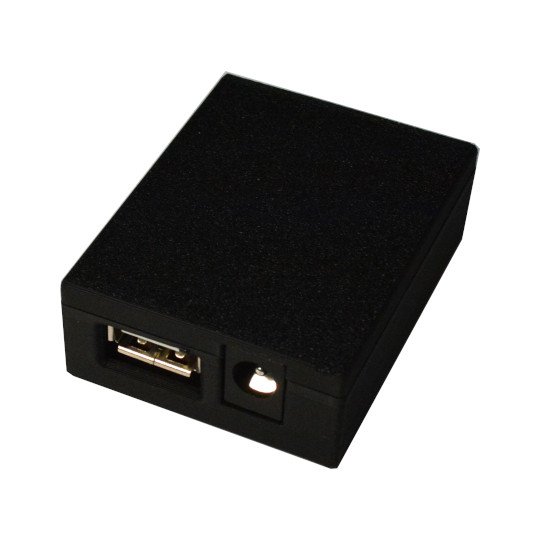

• sealed device with three connectors to connec to USB-HOST, USB-DEVICE and optional to additional power supply

SOFTWARE:

• no necessary, USB protocol is supported by hardware


FAQ:

  Q: Do I need to apply external power supply?
  A: USB-ISO may work without external power supply, but some laptops and other USB host devices do not provide enough power to power your USB devices, in such case is necessary to apply external power supply too, so the external power supply is optional.

ORDERING CODES:
		USB-ISO Completely assembled and tested
