EM-32G210F128-H

EM-32G210F128-H
EM-32G210F128-H EM-32G210F128-H EM-32G210F128-H

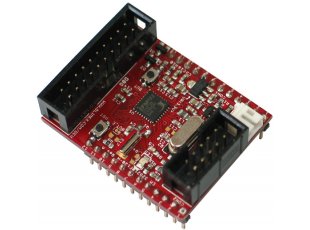

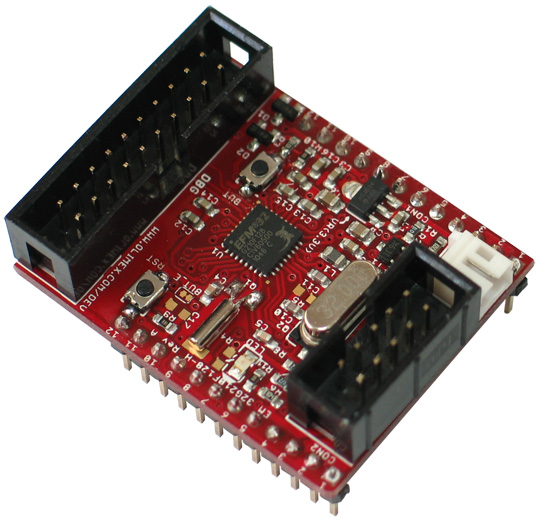

Energy Micro header breakout development prototype board
Price16.95 EUR
10 - 49 pcs15.26 EUR
50 - 10000 pcs13.56 EUR
In Stock

FEATURES

  • MCU: EFM32G210F128 32 bit Cortex-M3™ with 128K Bytes Program Flash, 16K Bytes RAM, 21 GPIO, 8 Channel DMA, 12 bit ADC 1Msps, UART/SPI, low power UART, I2C, 16bit TIMERS, CC-PWM, SSC, RTC, WDT, up to 32MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging. Notice that EFM32G210 supports only SWD and not full JTAG!
  • UEXT connector
  • Li-ion battery connector
  • RESET circuit
  • RESET button
  • Status LED
  • User button
  • On-board voltage regulator 3.3V with up to 800mA current
  • Power supply LED
  • Power supply filtering capacitor
  • 32 Mhz crystal
  • 32768 hz RTC crystal
  • Extension headers for all uC ports + RST and power supply
  • PCB: FR-4, 1.5 mm ~ 0.062", soldermask, silkscreen component print
  • Dimensions: (43 x 34.5)mm ~ (1.7 x 1.35)"
  • Distance between the headers: 30.48mm ~ 1.2"
