LPC-P2378

LPC-P2378
LPC-P2378 LPC-P2378 LPC-P2378

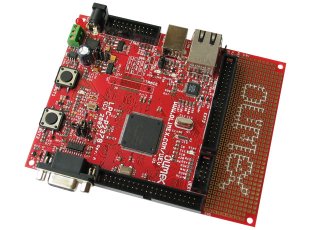

Development prototype board with LPC2378 Ethernet, USB, 2x CAN, 2xRS232, ETHERNET, SD/MMC
Price39.95 EUR
10 - 49 pcs37.95 EUR
50 - 10000 pcs35.96 EUR
Out of stock

FEATURES

  • MCU: LPC2378 16/32 bit ARM7TDMI-S™t with 512K Bytes Program Flash, 16K Bytes RAM, EXTERNAL MEMORY BUS, RTC, 4x 10 bit ADC 2.44 uS, 2x UARTs, 4x CAN, I2C, SPI, 2x 32bit TIMERS, 7x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
  • Standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • Optional - TRACE connector
  • Ethernet 100MBit
  • RS232 port
  • CAN driver and connector
  • SD/MMC card connector
  • UEXT connector with I2C, SPI, RS232 and power supply for connecting add-on modules like RF link, MP3, etc available from Olimex
  • RESET circuit with external control of Philips ISP utility via RS232 port
  • Jumpers for ISP/RUN mode
  • Two USER button
  • RESET Button
  • Two on board voltage regulators 3V and 5V with up to 800mA current
  • Extension port connector for many of microcontrollers pins
  • Single power supply: External power supply, USB or JTAG connector
  • Prototype area
  • Power supply led
  • FR-4, 1.5 mm, red soldermask, component print

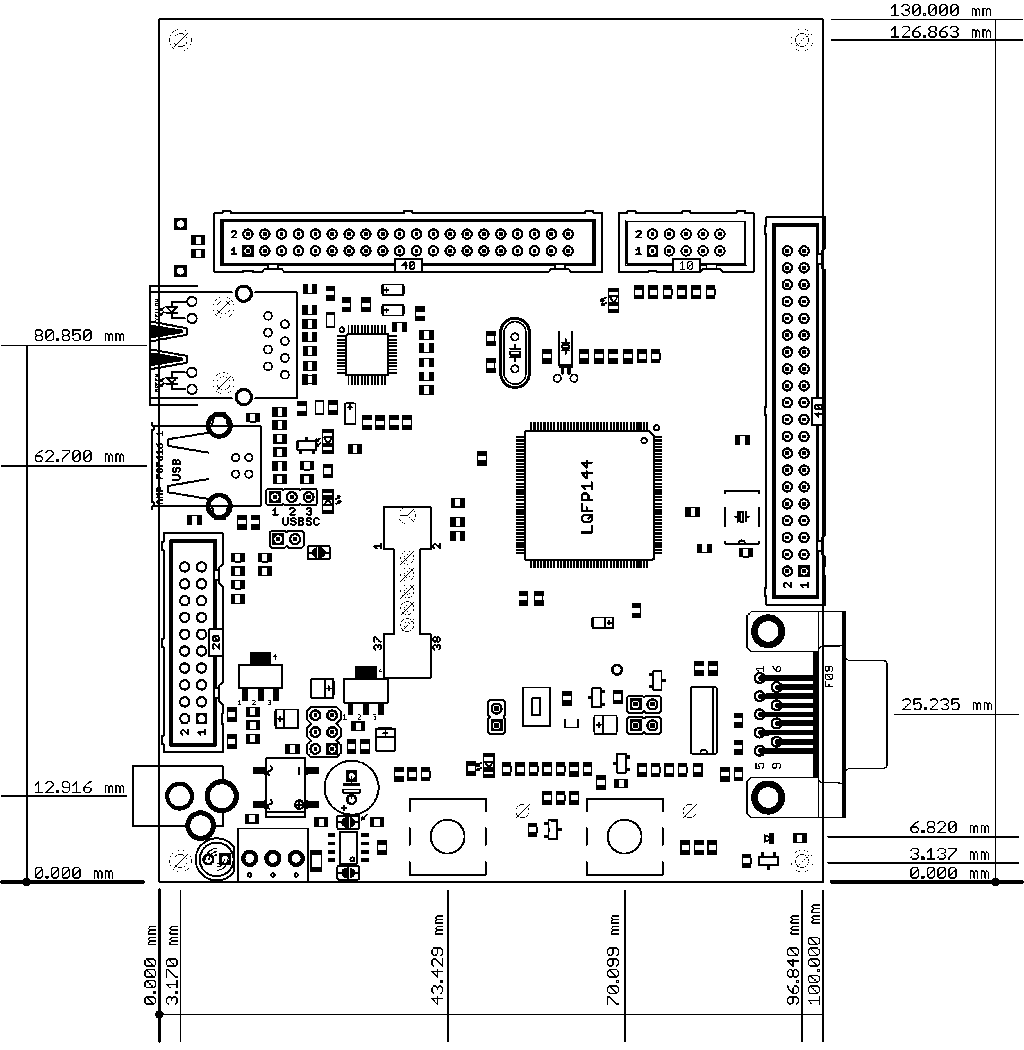

  • Dimension: 100x130mm (3.94x5.12")
