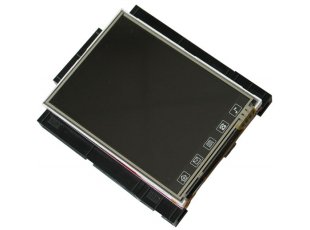

STM32-LCD

STM32-LCD was designed primarily to be used as a matchup stackable board to the MOD-GSM GSM connectivity module. Together, the two boards create a unique platform for GSM-enabled applications and M2M interface to different areas.

FEATURES

• MCU– STM32F103ZE - high-performance ARM® Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory - 512 Kbytes and SRAM - 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
• JTAG connector
• UEXT connector
• 2 x UEXT connectors: Universal Olimex Extension Connector which connects to our MOD-XXX external modules
• EXT_PWR connector to power up the GSM module
• Mini SD/MMC
• Mini USB
• LCD TFT 320x240 pixels 12-bit colour with touch screen ILI9341 controllers (previously ILI9325 or ILI9320)
• Power source connector
• Accelerometer
• 8 MHz crystal oscillator
• Reset circuit
• Clock circuit
• PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
• Dimensions (79.2 x 57.6)mm ~ (3.12 x 2.27)”

DOCUMENTS

• STM32-LCD user's manual
• ILI9341 datasheet (new display driver, for boards after February 2022)
• ILI9325 datasheet (new display driver, for boards afer August 2012)
• ILI9320 datasheet (old display driver, for boards before August 2012)
• STM32-LCD European Declaration of Conformity

HARDWARE

• STM32-LCD schematic
• JTAG connector (top view)

SOFTWARE

• latest STM32-LCD demo for EW-ARM 6.30

• latest STM32-LCD demo for EW-ARM 6.21

• EW-ARM demo code for MOD-GSM and MOD-GSM-EDGE (high speed) GSM modules connected to STM32-LCD
• Setup GCC+Eclispse for STM32 on MAC
• older STM32-LCD demo with older accelerometer for EW-ARM 6.21
