AVR-IO




Development board for 20 pin AVR microcontroller with STKxxx compatible 10 pin ICSP
Price | 12.95 EUR |
---|---|
10 - 49 pcs | 11.66 EUR |
50 - 10000 pcs | 10.36 EUR |
FEATURES
- ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
- DIL20 microcontroller socket
- Status LED connected to PB4
- Reset IC ZM33064
- Quartz crystal oscillator circuit 10MHz
- Voltage regulator +5V, 7805 and filtering capacitors
- Power plug-in jack
- RS232 DB9 female connector , simple level shifter with transistors and diodes
- 4 optocoupler isolated inputs with screw terminals
- Input status LEDs
- 4 relay outputs with 5A/250VAC contacts with screw terminals
- Output status LEDs
- Four mounting holes 3.3 mm (0.13")
- FR-4, 1.5 mm (0.062"), green soldermask, white silkscreen component print

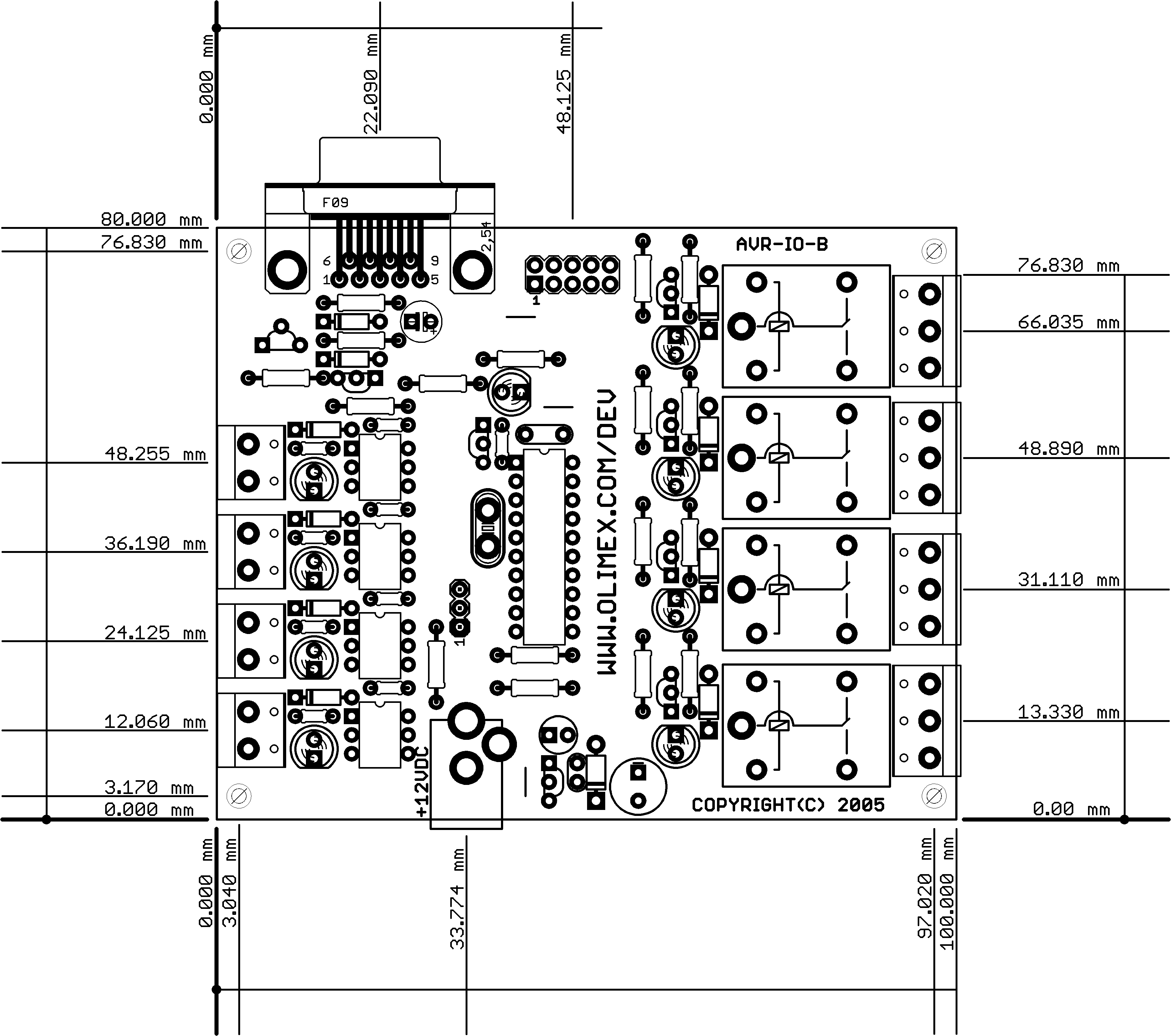

- Dimensions 80x100 mm (3.9 x 3.15")
DOCUMENTS
HARDWARE

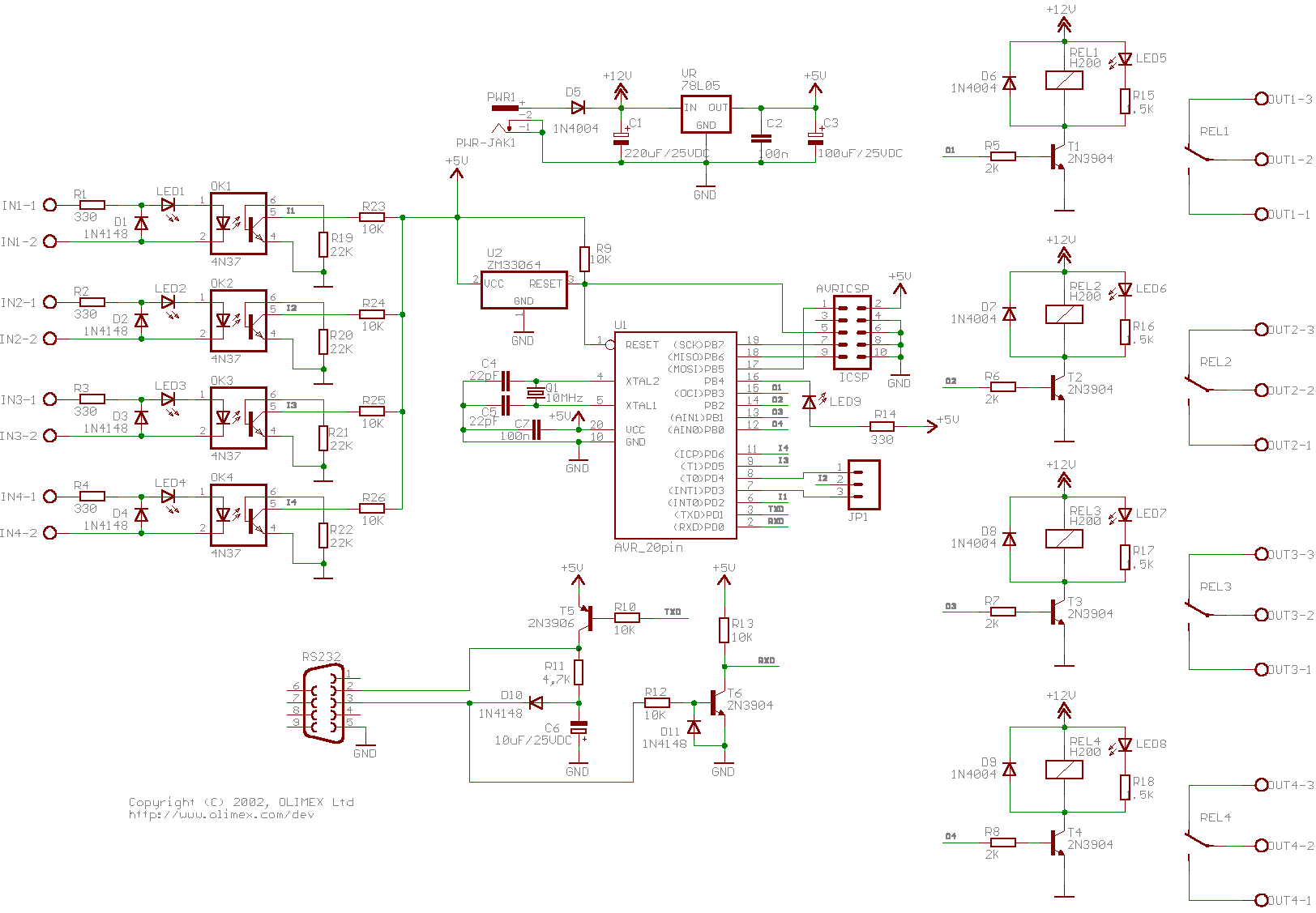

- AVR-IO Schematic
- AVR ICSP connector (top view)
