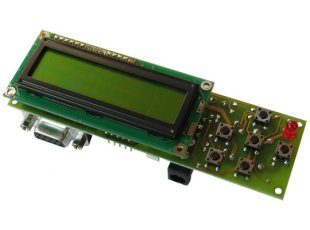

AVR-MT
Development board for 20 pin AVR microcontroller with STKxxx compatible 10 pin ICSP
| Price | 11.95 EUR |
|---|---|
| 10 - 49 pcs | 10.76 EUR |
| 50 - 10000 pcs | 9.56 EUR |
FEATURES
- ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
- DIL20 microcontroller socket
- Dallas touch button port
- Frequency input
- RS232 DB9 female connector
- RS232 interface circuit with Tx, Rx, signals
- RS232 TTL levels output connector
- Voltage regulator +5V, 78L05 and filtering capacitors
- Quartz crystal oscillator circuit 10MHz
- Reset IC ZM33064
- Relay with 5A/250VAC contacts with screw terminals
- Status LED for the relay
- Buzzer
- Power plug-in jack
- FR-4, 1.5 mm (0.062"), green soldermask, white silkscreen component print
- Four mounting holes 3.3 mm (0.13")
- Dimensions 120 x 36 mm (4.7 x 1.4")
DOCUMENTS
- AVR-MT User Manual
- Tutorial how to use AVR-MT with AVRGCC+AVR-Studio (in Spanish) written by our Chile distributor.
- EU Declaration of Conformity
- UKCA Declaration of Conformity
HARDWARE
- AVR-MT Schematic
- AVR ICSP connector (top view)
