LED-ROPE-10

LED-ROPE-10
10 pcs - addressable, water proof, sealed with resin RGB rope
Price6.00 EUR
10 - 49 pcs5.40 EUR
50 - 10000 pcs4.80 EUR
In Stock

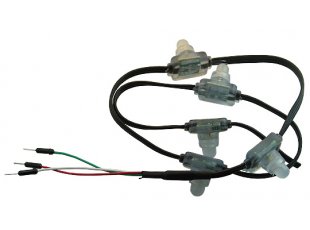

Addressable, water proof, sealed with resin RGB rope 10 cm between the LEDs. Every of the LEDs can be addressed individually with 24 bit color. Works with power supply from 4V to 5V, single pin for control, ropes can connect together to extend the length. Arduino code is available for control.

FEATURES

  • Dedicated WS2811 driver for each LED
  • 8mm LEDs
  • Ability to control the color and brightness of each LED independently
  • 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel
  • Each RGB LED draws approximately 50 mA at 5 V with red, green, and blue at full brightness
  • Flexible, waterproof silicone rubber sheath

FAQ

  • I can't figure out the wires. Can you specify the color code of the wires?
  • The typical color code is:

    RED wire - VCC (4V-5V)
    GREEN/BLUE (varies) wire - GND
    WHITE wire - DATA
  • Can I power this LED strip with 12V DC?
  • No. The driver ciruit is configured for 5V operation.
