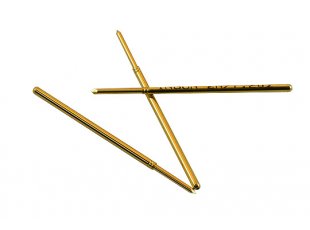

POGO-PIN
Metal pin with spring
| Price | 1.00 EUR |
|---|---|
| 10 - 49 pcs | 0.90 EUR |
| 50 - 10000 pcs | 0.80 EUR |
Pins with springs for testers, ICSP connectors etc
FEATURES
General data
Grid: 2.54 mm
Contacting from: Pad, via
Magnetic: Yes
Installation type: Plug-in
Quick-exchange system: Yes
Adjustable installation height: No
Non-rotating: No
Min. temperature: - 40 °C
Max. temperature: + 80 °C
RoHS-compliant: RoHS-3;6c
Electrical data
Current load capacity / rated current: 8 A
Typical resistance (Ri) : < 20 mOhm
Mechanical data
Total length: 33.4 mm
Barrel diameter: 1.37 mm
Maximum stroke: 6.35 mm
Spring pre-load: 0.66 N
Collar height: 00
Spring force at working stroke: 2 N
Working stroke: 4.3 mm
Tip style data
Tip style: 07 90° 3-edged chisel, self-cleaning
Tip diameter: 1.5 mm
Tip style surface: A gold
Tip style material : 3 CuBe
