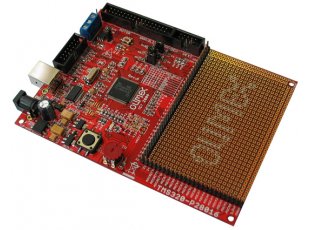

TMS320-P28016

TMS320F28016 is known to be the world's lowest cost 32-bit Real Time Microcontroller (DSP) with a build in CAN and it costs only US $3.60 / 1000 pcs quantity. This is a very good bargain for a 32-bit core running at 60 Mhz, delivering 60 MMACS, 32KB Flash, 12 KB RAM, 8 channel PWM 6 of them with enhanced resolution of 150 ps(!), 2 x 8 channels 3.75 MPSP 12-bit ADCs, CAN, RS232, SPI, I2C.

FEATURES

• MCU: TMS320F28016 32KB Flash, 12 KB RAM, 3.75 MPSP 2 x 8 channel ADCs, 8 PWM, CAN, SPI, RS232, I2C
• JTAG connector
• USB-to-RS232 converter allow easy to power board and to connect to notebooks and decent computers without RS232 port
• CAN driver and connector
• UEXT connector with SPI, RS232, I2C for connection to other Olimex modules as MOD-NRF24Lx, MOD-MP3, etc.
• MOTOR control connector (for add on modules with ADC, PWM, Interrupt signals available)
• User button
• Trimmer potentiometer connected to Analog input
• Power supply LED
• User status LED
• RST button
• External power supply jack for AC or DC power supply
• Voltage regulator + power supply filtering capacitor
• Extension headers for each uC pin
• Prototype area with 0.1" step, Vcc + GND bus
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 100x80 mm (3.9x3.15")

DOCUMENTS

• TMS320-P28016.pdf - users manual
• Code Composer Studio v6.1.2 blinking LED tutorial - how to use TMS320-P28016 with TMS320-XDS100-V3
• Code Composer Studio v3.3 tutorial - how to use TMS320-P28016 board with TMS320-JTAG
• Flash programming of TMS320-P28016 - using CCSv3.3
• TMS320-P28016 European Declaration of Conformity

HARDWARE

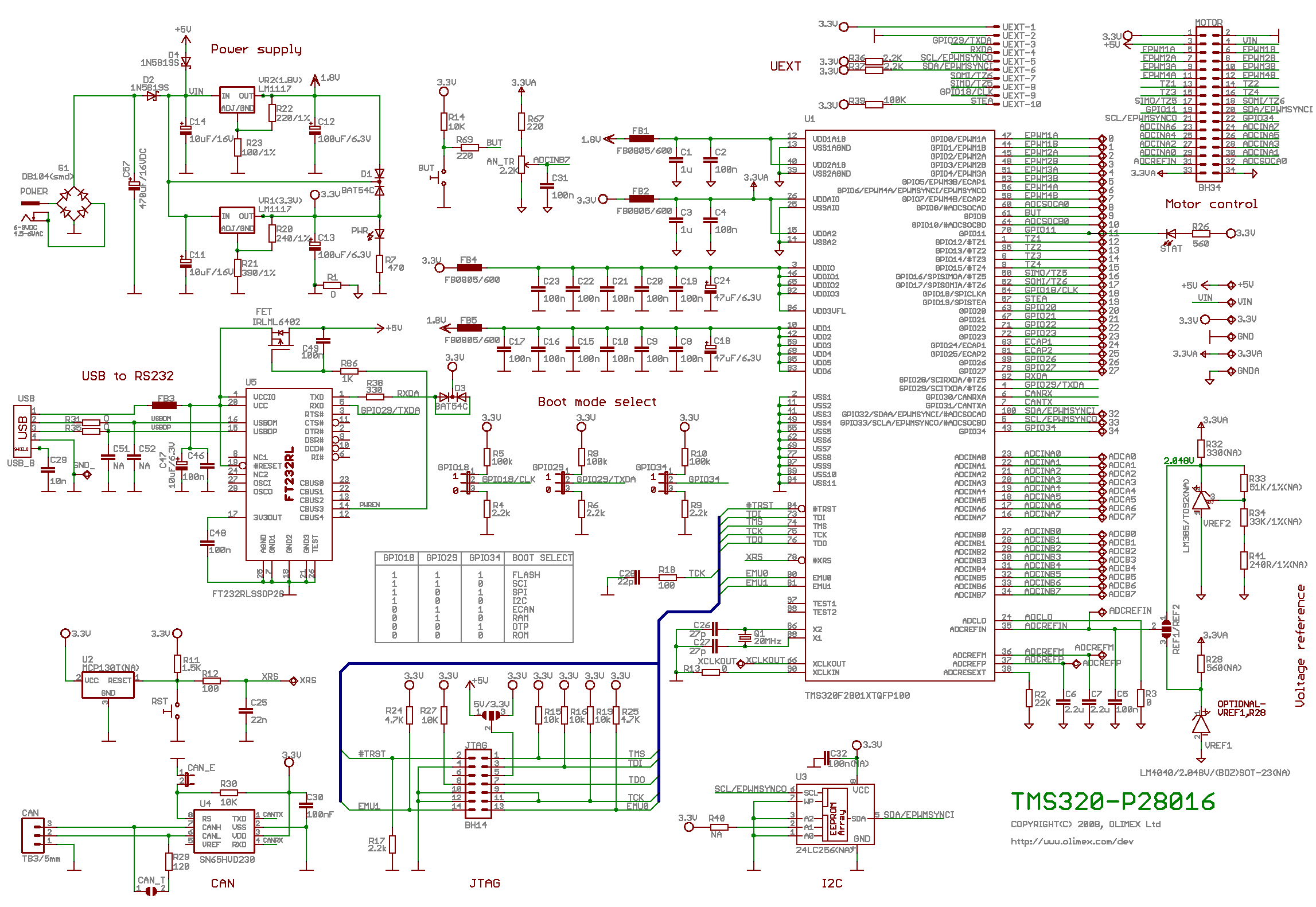

• TMS320-P28016 Rev. A schematic
• TMS320-JTAG connector layout (top view)

SOFTWARE

• The best idea is to use the examples and libraries from sprc191.zip and edit them for TMS320-P28016
• Blink LED for CCS v3.3
• RS232 echo back for CCS v3.3
• ADC read for CCS v3.3
• Flash programming blink LED for CCS v3.3
