MSP430-H2274

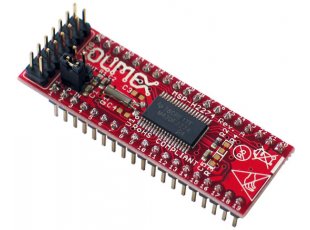

MPS430F2274 header board
| Price | 7.95 EUR |
|---|---|
| 10 - 49 pcs | 7.16 EUR |
| 50 - 10000 pcs | 6.36 EUR |
FEATURES
- MCU: MSP430F2274A with 32K Bytes Program Flash, 256 Bytes data Flash, 1K Bytes RAM
- JTAG connector
- JTAG Power_In and Power_Out jumpers
- 32 768 Hz oscillator crystal
- TEST pin pull-down
- RST/NMI pin pull-up
- Power supply filtering capacitor
- Extension headers for each uC pin
- PCB: FR-4, 1.5 mm (0,062"), solder mask, silkscreen component print
- Dimensions: 56.2x 19.5mm ( 2.21x 0.77")
- Space between the pin rows: 15.24 mm (0.6")
HARDWARE
- MSP430-H2274 Schematic
- MSP430 JTAG connector (TOP view)
SOFTWARE
- MSP430-H2274 Demo Example - Blinking LED
