MSP430-HFR5739

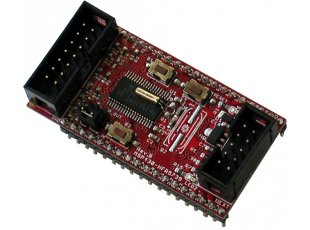

MPS430FR5739 header board The MPS430-HFR5739 board has all the essential components needed to get acquainted with the ultra-low power MSP430HR5739 processor. It is easy to add additional components due to the easy-to-access headers.

FEATURES

• MCU: MSP430FR5739 with 16K Bytes program FRAM, 1024 Bytes SRAM, 10-bit A/D converter, 16-channel comparator with voltage reference generation and hysteresis capabilities, three enhanced serial channels capable of I2C, SPI, or UART protocols, internal DMA, hardware multiplier, real-time clock, five 16-bit timers, and more
• JTAG connector
• Jumpers for JTAG powering enable disable
• User LED
• 2 user buttons
• 32 768 Hz oscillator crystal
• Design supports additional high frequency crystal
• TEST pin pull-down
• RST/NMI pin pull-up
• Power supply filtering capacitor and 3.3V voltage regulator
• Extension headers for each uC pin
• PCB: FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
• Dimensions: 54.6x27.9 mm (2.15x1.10")
• Space between the pin rows: 25.4 mm (1'')

DOCUMENTS

• EU Declaration of Conformity
• UKCA Declaration of Conformity

HARDWARE

• MSP430-HFR5739 schematic

SOFTWARE

• LED and button demo for IAR EW
