MSP430-PG2231
![MSP430-PG2231](/Products/MSP430/Proto/MSP430-PG2231/images/thumbs/310x230/MSP430-PG2231-01.jpg)
![MSP430-PG2231](/Products/MSP430/Proto/MSP430-PG2231/images/thumbs/100x75/MSP430-PG2231-01.jpg)
![MSP430-PG2231](/Products/MSP430/Proto/MSP430-PG2231/images/thumbs/100x75/MSP430-PG2231-02.jpg)
![MSP430-PG2231](/Products/MSP430/Proto/MSP430-PG2231/images/thumbs/100x75/MSP430-PG2231-03.jpg)

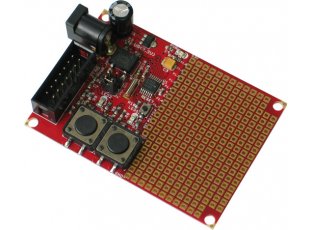

MPS430FG2231 header board
Price | 4.95 EUR |
---|---|
10 - 49 pcs | 4.46 EUR |
50 - 10000 pcs | 3.96 EUR |
FEATURES
- MCU: MSP430FG2231 with 2K Bytes Program Flash, 256 Bytes RAM
- RESET button
- Two user buttons
- Two status LEDs
- JTAG connector
- JTAG Power_In and Power_Out jumpers
- 32 768 Hz oscillator crystal
- TEST pin pull-down
- RST/NMI pin pull-up
- Power supply filtering capacitor
- Extension headers for each uC pin
- PCB: FR-4, 1.5 mm (0,062"), soldermask, silkscreen component print
- Dimensions: 70x50 mm (2.75x2")
HARDWARE
- MSP430-PG2231 Schematic
- MSP430 JTAG connector (TOP view)
SOFTWARE
- MSP430-PG2231 Demo Examples LED, BUTTON
