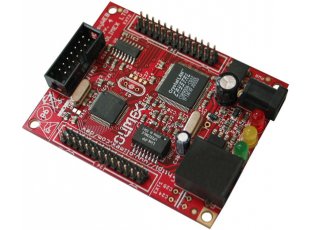

MSP430-EASYWEB-3
TCP/IP board with MPS430F149 based on Andreas Dannenberg easyWeb TCP/IP
Price | 18.95 EUR |
---|---|
10 - 49 pcs | 17.06 EUR |
50 - 10000 pcs | 15.16 EUR |
FEATURES
- MSP430F149 running Andreas' open source TCPIP stack
- CS8900 LAN controller + LAN transformer and RJ45 LAN connector
- Three status LEDs for the LAN
- JTAG connector for MSP430F149 programming
- Low power RS232 driver MAX3232
- Two extension headers for MSP320F149 ports
- 8Mhz oscillator crystal
- Dimensions: 76x60 mm (3x2.4")
DOCUMENTS
- MSP430-EasyWeb3 user's manual
- SLAA137 from Texas Instruments for the original MSP430-easyWeb, the original TCP/IP stack is available for download on TI web site

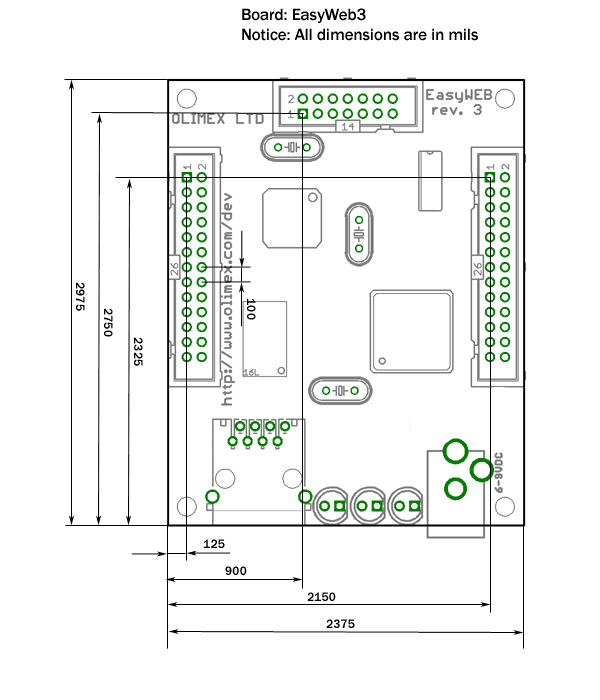

- MSP430-EasyWeb-3 dimensions
- MSP430-EASYWEB-3 European Declaration of Conformity
HARDWARE
SOFTWARE
- MSP430-EasyWeb Test Software
- TCP/IP port of Adam Dunkel's uIP made by Rowley Associates, UK
- MSP430-EasyWeb3 modified by Paul Aguayo to work with new IAR EW-MSP430 version
- MSP430-EasyWeb modified by Bart van Deenen to work with MSP430GCC free compiler and changed default IP to 10.0.0.190
- MSP430-EasyWeb3 port for MSPGCC with code here
