CS8900A-H

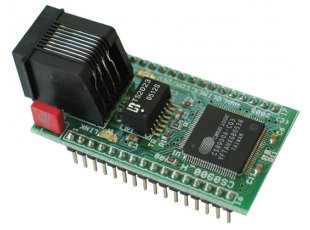

CS8900 Ethernet controller header board
| Price | 45.00 EUR |
|---|
FEATURES
- CS8900A-CQ3 Ethernet controller
- LAN transformer and RJ45 connector
- Two status LEDs for LAN and LINK
- Allows 8/16 bit data transfer and easy interface to any microcontroller
- Supports interrupts
- 0.1" row pins header
- PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

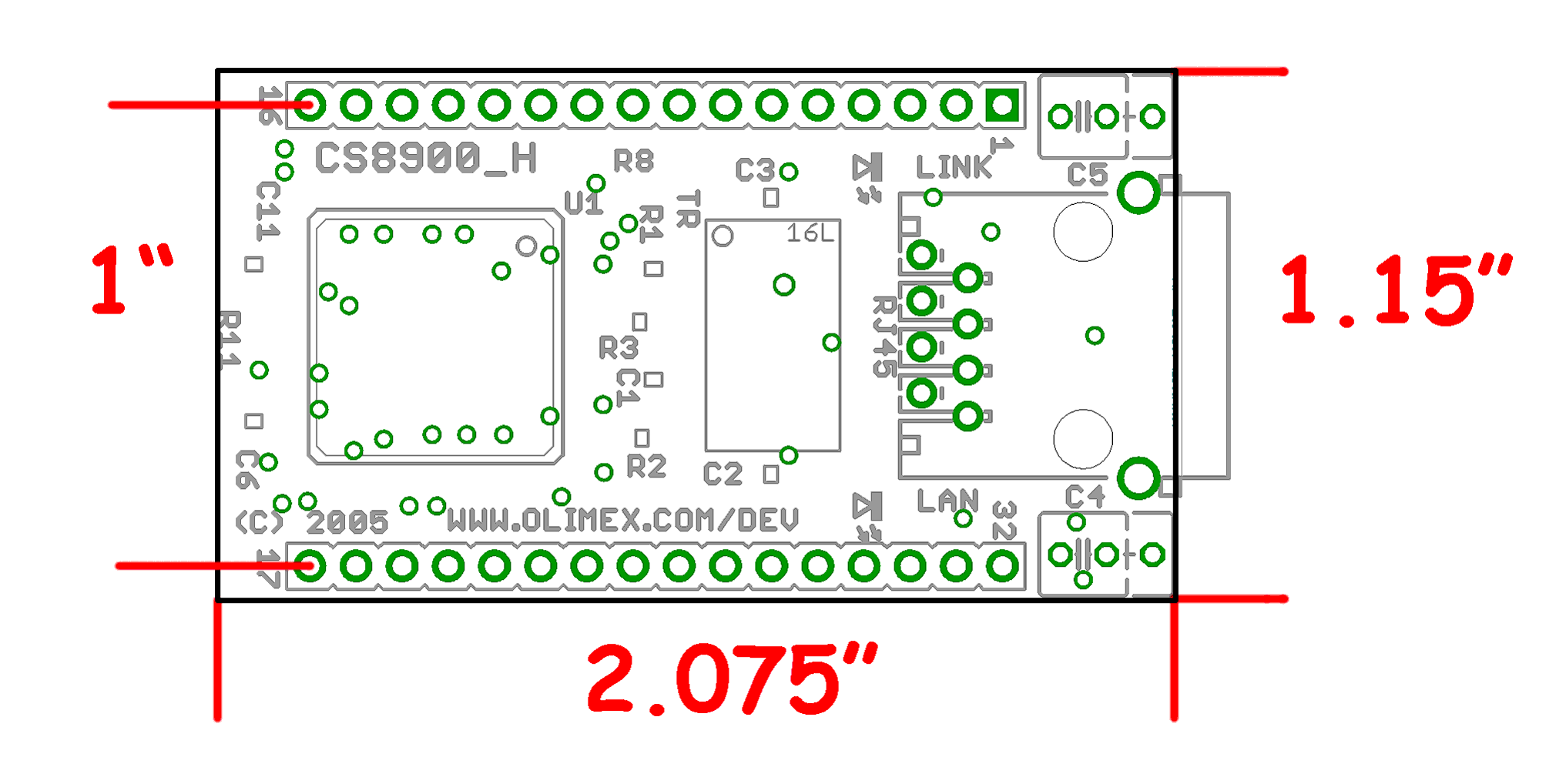

- Dimensions: 53x29 mm (2.075x1.15")
- space between the pin rows: 25.4 mm (1")
HARDWARE

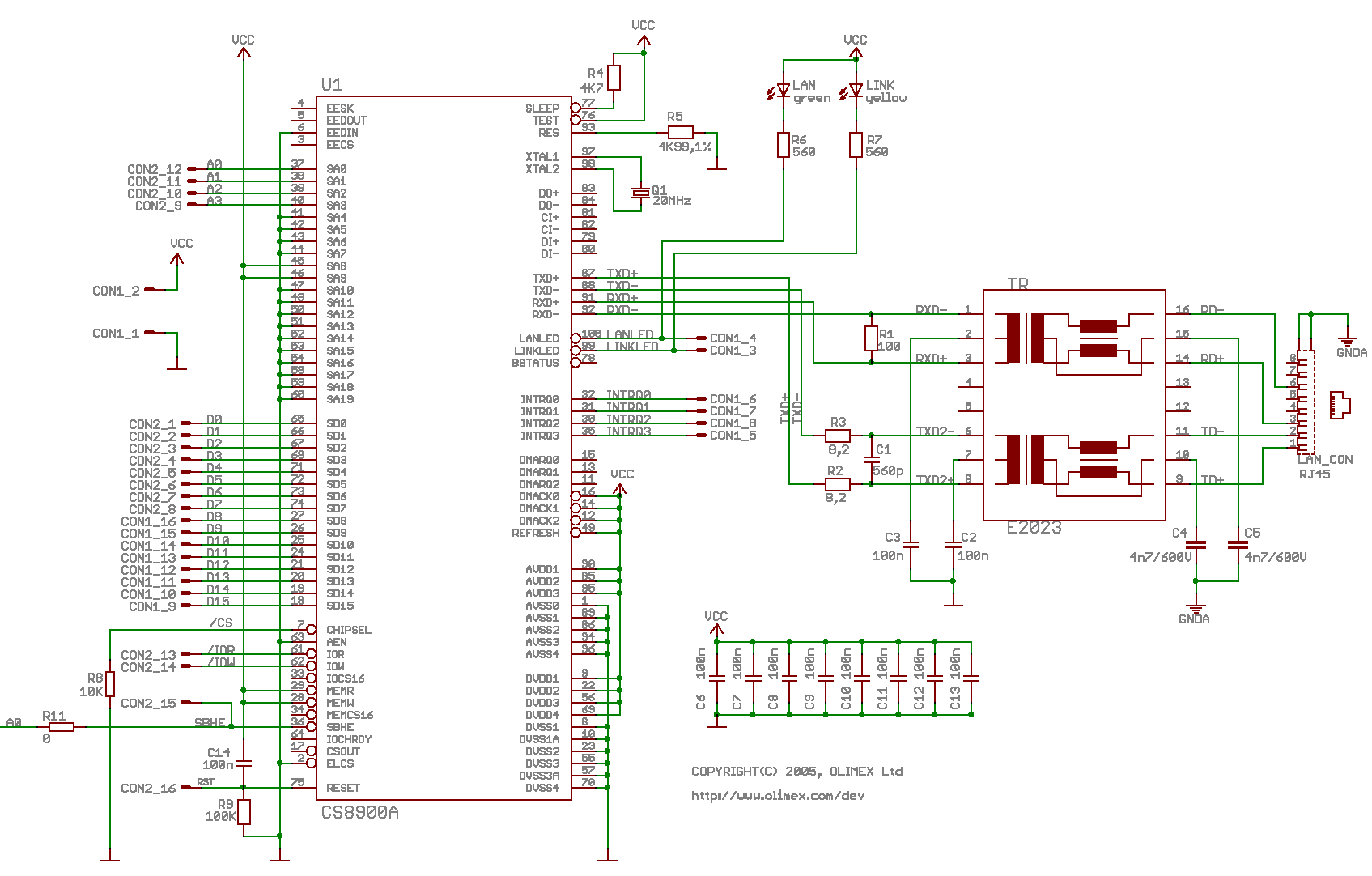

- CS8900A-H Schematic Revision B
SOFTWARE
- check our MSP430-EasyWeb and LPC-E212x pages for code which interface CS8900 to MSP430 and LPC ARM microcontrollers
- Sample code for 16 bit interfacing CS8900A-H to MSP430F149 and the wiring schematic
