MOD-POE
PoE injector for PIC-MICRO-WEB
| Price | 5.95 EUR |
|---|---|
| 10 - 49 pcs | 5.65 EUR |
| 50 - 10000 pcs | 5.36 EUR |

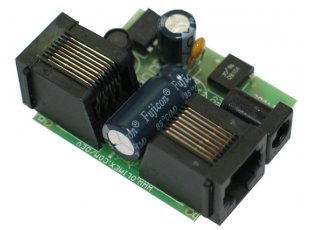

The MOD-POE board injects the necessary power supply in the UTP LAN cable, so that the PIC-MICRO-WEB can take power and Ethernet from same cable.
IMPORTANT NOTE
The MOD-POE doesn't follow the recommendations set by the IEEE 802.3af-2003 standard. This board is an "inhouse" injector. MOD-POE is not compatible with MOD-POE-V2 extractor (because it can't provide enough voltage).
FEATURES
- DC-DC step up converter
- Need power supply in range 9-24VDC
- Output 24VDC on PoE LAN wires
- Dimensions 50x30 mm (2 x 1.2")

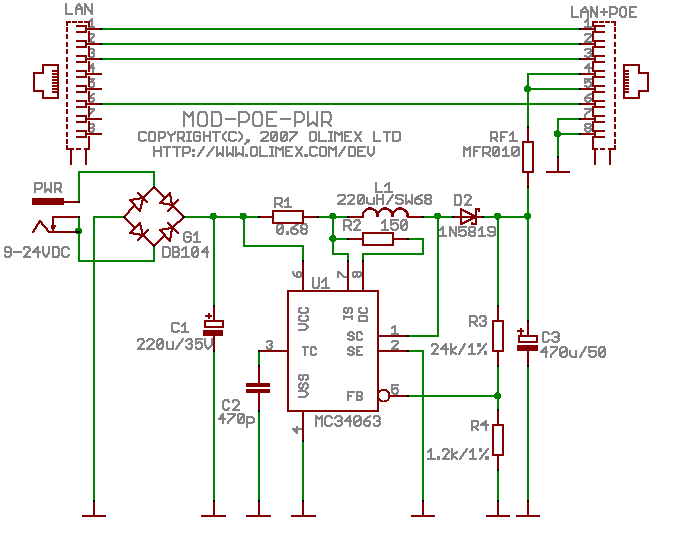

HARDWARE
