MOD-LCD4.3''

MOD-LCD4.3'' - Open Source Hardware Board
MOD-LCD4.3'' - Open Source Hardware Board MOD-LCD4.3'' - Open Source Hardware Board MOD-LCD4.3'' - Open Source Hardware Board
LPC1788 development board with 96MB SDRAM, 4.3 inch LCD, SD-CARD, UEXT - perfect solution for industrial panels
Price43.95 EUR
10 - 49 pcs41.75 EUR
50 - 10000 pcs39.56 EUR
In Stock
Note that the older revisions of MOD-LCD4.3'' were sold with LPC2478. New revisions (named MOD-LCD4.3''+) feature the faster and overall better LPC1788. LPC178x is the official NXP successor to LPC2478 since the processors are pin-to-pin compatible.

FEATURES

  • MCU: LPC1788 Cortex M-3 512KB Flash, 96KB RAM, up to 120Mhz
  • LCD 4.3" 480x272 pixels 24bit color TFT color with Backlight and Touchscreen
  • Micro SD card
  • 32MB of SDRAM
  • DC-DC for LCD backlight
  • UEXT connector to interface with any of our development boards with UEXT connector

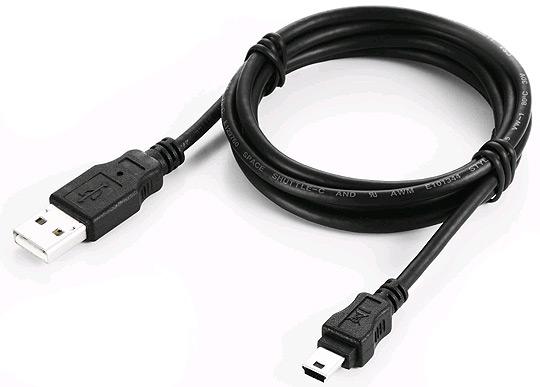

  • Mini USB device connector
  • Optional 3-axis digital accelerometer with 11 bit accuracy
  • USB device connector
  • JTAG connector
  • RESET button and circuit
  • USER button
  • Power supply LED
  • USB activity LED
  • Touchscreen interface
  • EXT1 and EXT2 2x20 pin 0.05" extension connectors on the board edge for all unused LPC2478 ports
  • FR-4, 1.5 mm, red soldermask, component print
  • Dimensions:115x67.5mm (4.5 x 2.7")

DOCUMENTS

HARDWARE

SOFTWARE

FAQ

  • Our company frequently purchases MOD-LCD4.3". Recently purchased items have some problem with the display (it is shifted left and there are artifacts). What is the problem?
  • This is a software issue that was present in our official demo code and your project probably inherited it. Make sure to re-download the example and check how we edited drv_glcd.c file. LCD polarity bit should be set to value "0" (e.g. LCD_POL_bit.IPC = 0;). It was set to value "1" before, which was causing the problem.
