MOD-RFID1356MIFARE

MOD-RFID1356MIFARE
MOD-RFID1356MIFARE MOD-RFID1356MIFARE MOD-RFID1356MIFARE
NFC RFID reader writer for 13.56Mhz NFC MIFARE RFID tags
Price20.00 EUR
In Stock

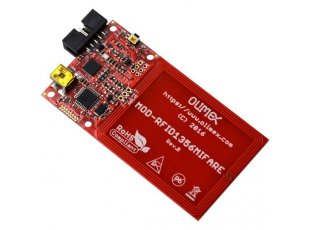

MOD-RFID1356MIFARE can read and write NFC / MIFARE RFID tags operating at 13.56Mhz. MOD-RFID1356MIFARE uses NXP PN532 to read and write NFC / MIFARE RFID cards. The board design features an additional second microcontroller to expands the ways to communicate with the host device - it adds 3 possibilities: USB HID keyboard, USB CDC serial communication and UART serial at CMOS levels for boards with UEXT.

UEXT cable (CABLE-IDC10-15cm) included.

FEATURES

  • Easy to integrate with any computer or board with USB host capabilites
  • Comes with custom firmware with easy-to-access modes of oparation and convenient commands
  • Emulates USB HID keyboard
  • Emulates USB CDC serial port

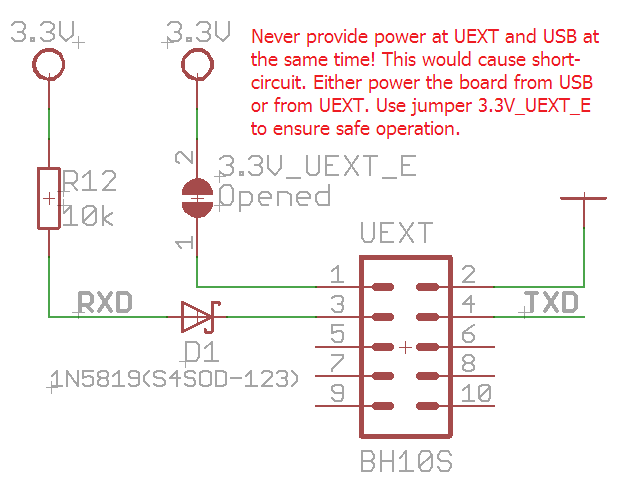

  • Connects to any board via the UART at the UEXT connector, UEXT cable included
  • Easy to update the firmware without the need of external tools
  • Large antenna
  • Two LEDs
  • Operating temperature: -30+85°C ~ (-22+185)°F
  • Dimensions: (90 x 47)mm ~ (3.54 x 1.85)"
