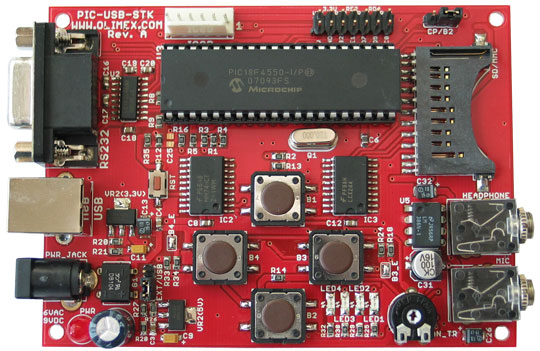

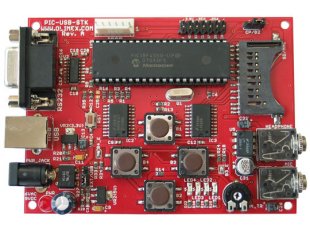

PIC-USB-STK
PIC USB starterkit prototype board for PIC18F4550 microcontroller with USB
| Price | 18.95 EUR |
|---|---|
| 10 - 49 pcs | 17.06 EUR |
| 50 - 10000 pcs | 15.16 EUR |
This is a starterkit which allows you to explore all the capabilities of the PIC18F4550 and Microchip's USB firmware. The software examples include: a USB HID mouse which allows you to move the mouse cursor with the four buttons on the board, a USB Mass storage device on a SD-MMC card simple adds a USB disk to your computer, a USB to RS232 converter - all the firmware is under your control and ready to be customized and embedded in your next application. The debugging is In-Circuit through an ICSP connector, the free available ports are available on the EXTension connector.
FEATURES
- ICSP/ICD connector for programming with PIC-MCP, PIC-MCP-USB, PIC-PG1,PIC-PG2, PIC-PG3 or PIC-PG4 and programming and debuggine with PIC-ICD2, PIC-ICD2-POCKET, PIC-ICD2-TINY
- USB 2.0 type B connector allow board to be interfaced to PC host.
- RS232 connector
- SD-MMC connector
- Audio In, Audio Out connectors
- Status LEDs
- Trimmer potentiometer
- Four buttons
- PIC18F4550-I/P on DIL40 socket
- Quartz crystal 20Mhz
- Reset button
- Power plug-in jack with diode bridge can be powered with AC or DC power supply
- 5V voltage regulator
- Extension slot for the not connected ports
- Four mounting holes 3,3 mm (0,13")
- FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
- Dimensions 104x76 mm (4,1x3")
DOCUMENTS
HARDWARE

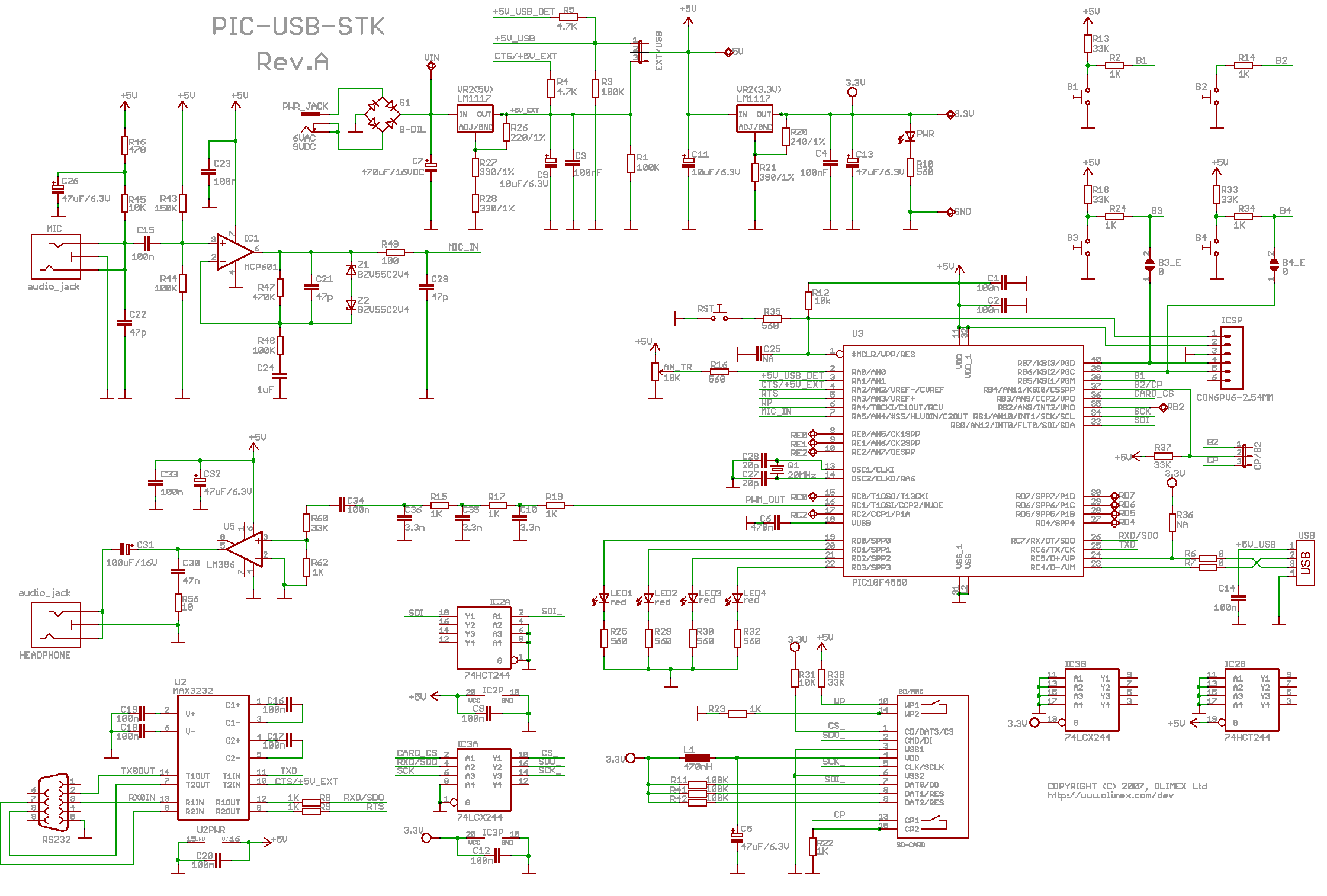

- PIC-USB-STK schematic Rev.A
- PIC ICSP connector
SOFTWARE
Note that all examples require MPLAB 8.xx and MPLAB C18 v3.xx compiler
- USB bootloader (C source and HEX)
- HID Mouse demo (C source and HEX)
- Mass Storage device (C source and HEX)
- USB RS232 converter (C source and HEX)
- PIC-USB-STK demo code (C source and HEX)
- PIC-USB-STK audio (pitch shift) demo provided by Alexander Boltik LINK (for more info refer to the readme.txt in the package)
