PIC-WEB-A

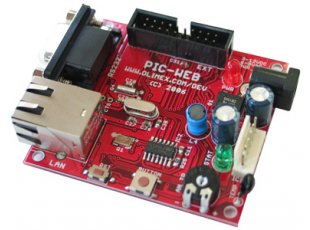

Revision.A web server TCP-IP development board PIC microcontrollers
FEATURES
- PIC18F452 microcontroller, ENC28J60 Ethernet controller
- 1Mbit on board serial flash for web pages storage
- ICSP/ICD connector for programming with PIC-MCP, PIC-MCP-USB and programming and debugging with PIC-ICD2 and PIC-ICD2-POCKET.
- Reset button
- User event button
- Analogue trimmer potentiometer
- Thermistor for temperature monitoring
- RS232 driver and connector
- Complete web server and TCP-IP stack support as per Microchip's open source TCP-IP stack
- Power plug-in jack for +5VDC power supply
- Voltage regulator +3.3V and filtering capacitors
- Status LED
- Extension header to connect to other boards
- Dimensions 60x65 mm (2.36x2.55")
DOCUMENTS
- PIC-WEB.pdf - User's manual
- Understanding PIC WEB boards and Microchip TCP-IP stack tutorial
- Microchip TCP/IP AN833 - please read carefully, the TCP/IP stack is described
SOFTWARE
- Microchip TCP-IP Stack 4.02 modified for PIC-WEB
- (old) PIC-WEB free Microchip's TCP-IP stack tuned for PIC-WEB with and IP set to 192.168.0.30, you can configure PIC-WEB TCP-IP via the RS232, you may need to disable DHCP if the IP web page doesn't open from the first time, all boards are shipped with pre-loaded TCP-IP stack
