PIC-WEB-BOX
Web server TCP-IP development board PIC microcontrollers with UEXT connector
| Price | 49.95 EUR |
|---|---|
| 10 - 49 pcs | 44.96 EUR |
| 50 - 10000 pcs | 39.96 EUR |

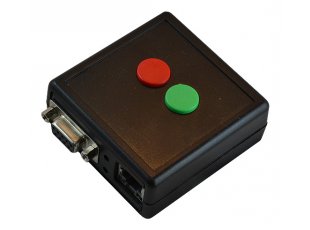

PIC-WEB-BOX is a board that adds additional features over the design of the popular OLIMEX PIC-WEB board. PIC-WEB-BOX adds a protective plastic cover and a microSD card connector. The included microSD card provides enough memory space for almost any web content! The board is developed with a custom bootloader in mind. The bootloader would allow programming via a web interface. After the bootloader project is finished it would be implemented in the production routine of PIC-WEB-BOX and it would be published in the software section of this page. Until then a PIC compatible programmer/debugger would be required to be able to upload programs to the board.
FEATURES
- PIC18F67J60 microcontroller
- Convenient plastic box that provides protection and aesthetic look
- MicroSD card connector
- Built-in 2GB microSD card
- Ethernet connector and functionality
- Mini ICSP/ICD connector for programming with PIC-compatible tool (like PIC-KIT3)
- Reset button
- 2 user-programmable buttons
- User programmable LED
- Power LED
- Thermistor for temperature monitoring
- RS232 driver and DB9 female connector
- UEXT connector
- Complete web server and TCP-IP stack support as per Microchip's open source TCP-IP stack
- Built-in custom bootloader that allows programming the board via Ethernet (featured in all boards manufactured after 01.02.2014, also available for download from the software section)
- Power plug-in jack for 9 to 30 VDC power supply
- 2 extension headers for easier access of microcontroller pins
- Outer dimensions of the board 65x65 mm (2.55"x2.55")
