MSP430-417STK2
MPS430F417 starterkit development board
This item is OBSOLETE
FEATURES
- MCU: MSP430F417 with 32K Bytes Program Flash, 256 Bytes data Flash,1K Bytes RAM
- JTAG connector
- Custom LCD panel with 5 digits, 5 decimal counters, special signs
- RS232 connector
- RS232 interface circuit with Tx, Rx signals
- Dallas touch button port
- Status LED
- Two buttons
- Buzzer
- CR2032 li-battery holder 3V
- 32 768 Hz oscillator crystal
- TEST pin pull-down
- RST/NMI pin pull-up
- Power supply filtering capacitor
- Extension headers for unused uC pins
- PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
- Dimensions: 80x50 mm (3.15x1.96")
DOCUMENTS
HARDWARE

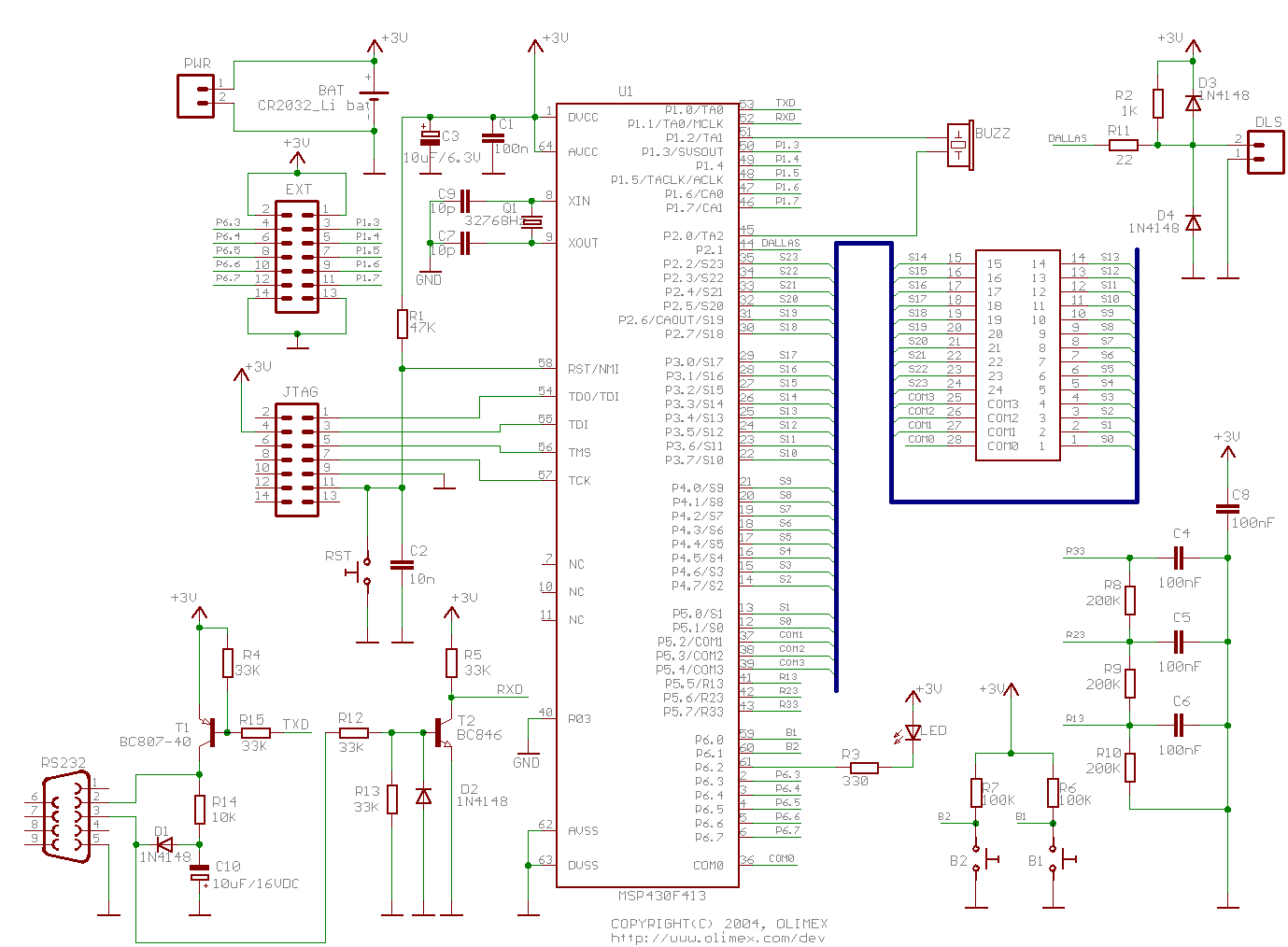

- MSP430-417STK2 Schematic
- MSP JTAG connector (top view)

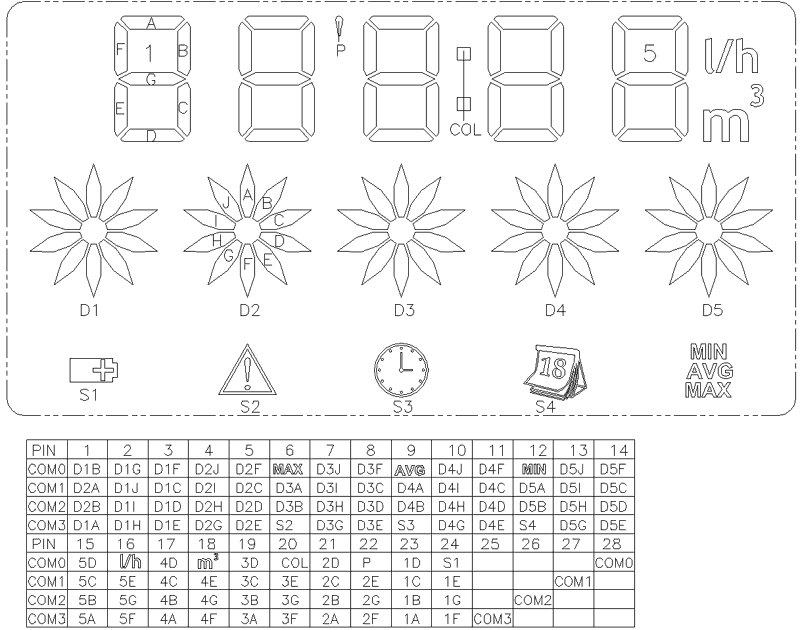

- LCD pinout
SOFTWARE
- MSP430-417STK.asm test software for RS232 Tx/Rx, button scan, LED, buzzer, Dallas iButton check present
- DCO calibration subroutine, useful when you need to know at what frequency MSP430 is running
- Real Time Clock subroutine - software implementation
- I2C EEPROM subroutines - 24xx eeprom subroutines
- Uart subrotine - software implementation of serial communication 9600,1,8,N
