ATN-GA1102CAL

ATN-GA1102CAL

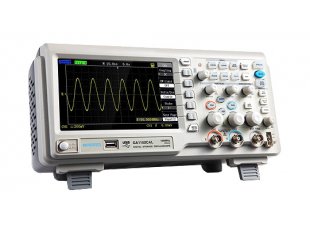

GA1000CAL 100HMz 2 channel DSO oscilloscope

This item is OBSOLETE

N/AEUR

Digital storage oscilloscope for troubleshooting electronic circuits

Package includes

  • User's manual
  • 1:1/10:1 probes(2 PCS ea)
  • Power cord EU style
  • USB cable
  • CD (containing PC software GAScope1.0)

FEATURES

  • 1Gs/s sampling rate
  • 2 Channels
  • 7" TFT LCD Color Display 800 (H) pixels x 480 (V) pixels
  • Storage/memory depth: single channel: 40Kpts; double channels: 20Kpts
  • Various trigger functions: Edge, Pulse, Video, Slope and Alternation
  • Unique digital filtering and waveform recording functions Pass/Fail function
  • 32 kinds of automatic measurement and manual cursor tracking measurement functions
  • Two groups of reference waveforms, 16 groups of common waveforms, 20 groups of internal storage/output; support waveform setting, external storage and output of CSV and bitmap file by USB flash disc (CSV and bitmaps cannot be output from USB flash disc).
  • Adjustable waveform brightness and screen grid brightness
  • The pop-up menu display mode realizes more flexible and more natural for users’ operations. Various kinds of language interface display, Chinese and English. On-line help system
  • Shortcut key to PRINT, support print screen
  • Standard configuration interfaces: USB Host, USB Device, RS-232. USB Host: support storage of USB flash disc and upgrading of USB flash disc system software. USB Device: support
  • PC connection for remote communication - USB host/device: support USB printers and USB flash drives
  • PictBridge Function
  • Easyscope Software
