DM9000E-H
DM9000E 10/100 MBit Ethernet controller header board
| Price | 19.95 EUR |
|---|
A low cost 10/100 Mbit Ethernet controller development board based on the DM9000EP with flexible options to be addressed with 8-16-32 bit data bus microcontrollers and support for MDI-X. The compact size of 50x40 mm and the 0.1” step connectors make this board perfect for prototyping.
FEATURES
- DM9000E 10/100 Mbit Etherner controller
- LAN connector with build in transformer
- Two status LEDs on LAN connector
- Supports 8-16-32 bit data bus, interrupts and polling
- Two 2x26 0.1" step connectors
- PCB: FR-4, 1.5 mm (0,062"), red soldermask, white silkscreen component print
- Dimensions: 50x40 mm (1.95 x 1.57")
- space between the pin rows: 33 mm (1.3")
DOCUMENTS
HARDWARE
- DME9000E-H revision C archive with schematic, BOM
- DM9000E-H revision B schematic and dimensions
SOFTWARE

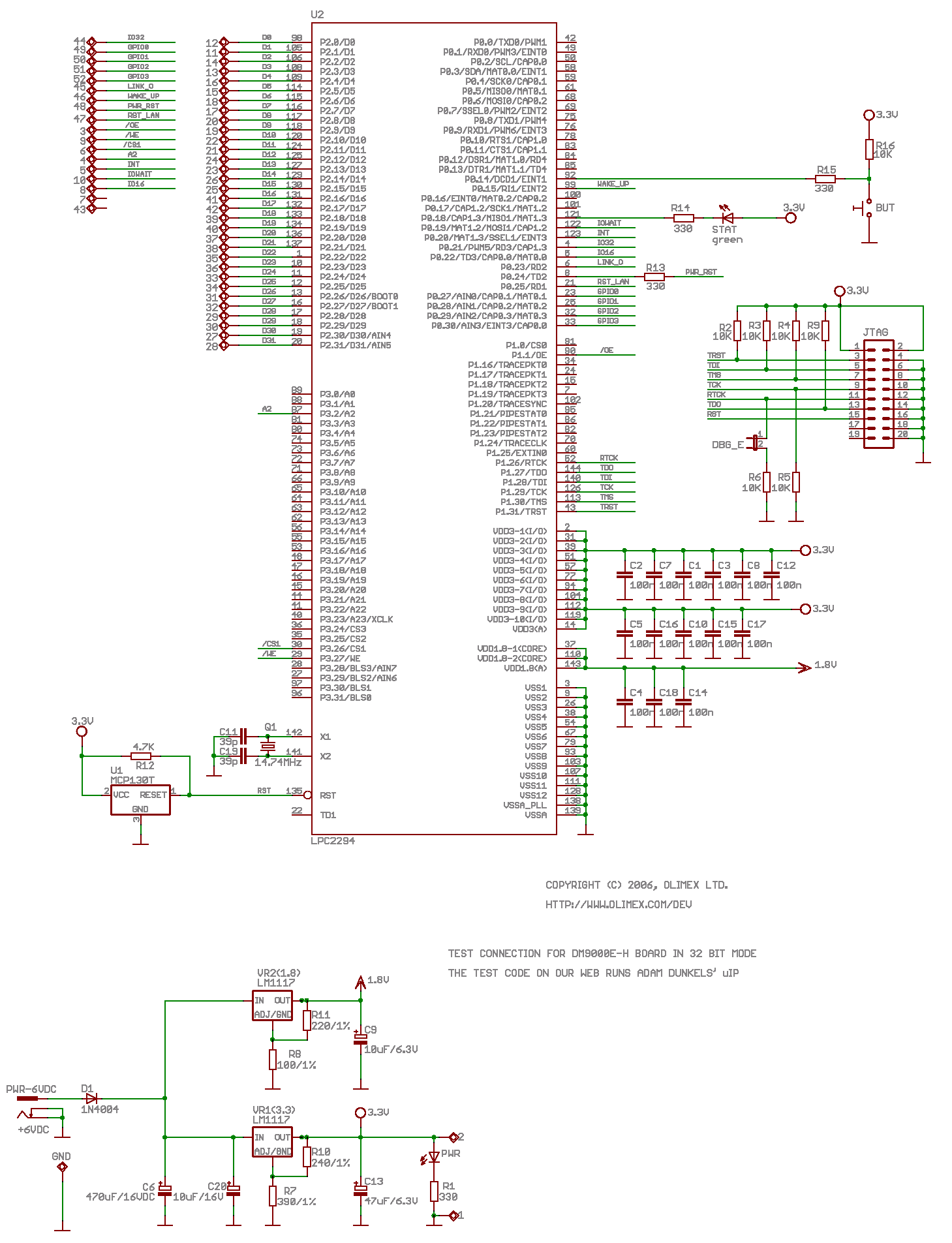

- DM9000E-H uIP test code for LPC2294 made with EW-ARM and schematic for simple LPC2294 board which to run this code on DM9000E-H
