OLIMEXINO-85S
OLIMEXINO-85S Arduio-like board
World's tiniest Arduino-comatible board!
| Price | 4.95 EUR |
|---|---|
| 10 - 49 pcs | 4.46 EUR |
| 50 - 10000 pcs | 3.96 EUR |
As a size comparison: the PCB of this board is 30% smaller compared to the PCBs of each the digispark and the femtoduino boards.
FEATURES
- World's smallest Arduino-compatible board:
only (0.665x0.500)inch ~ (16.9x12.7)mm - ATtiny85-SU microcontroller with pre-loaded "Micronucleus" bootloader
- Tested and working with properly configured Arduino IDE
- Li-Po battery connector for stand-alone operation
- Micro USB cable connector (unlike most of the other Olimex boards which use mini USB)
- Two LEDs - power and status
- Open-hardware board, board schematics and layout available for Eagle
- Open-software board, thanks to the Micronucleus project and the Digispark efforts
- Ultra low-power design for battery and handheld operations
- Industrial grade -45+85C
DOCUMENTS
HARDWARE

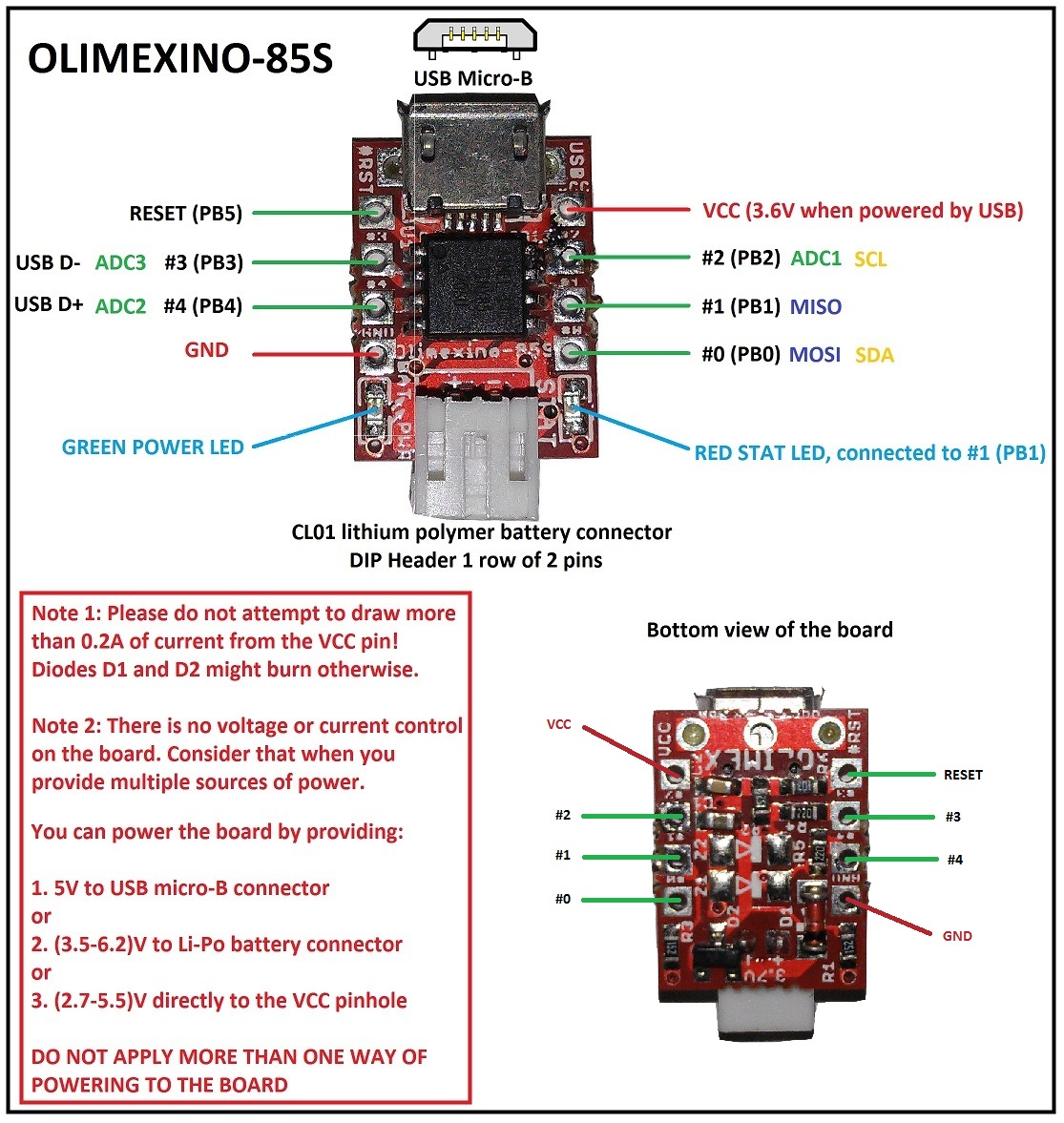

- OLIMEXINO-85s pinout picture in JPEG format
- OLIMEXINO-85s board dimensions in PDF format
- OLIMEXINO-85S latest schematic in PDF format
- OLIMEXINO-85S Eagle source files at GitHub
