PIC32-T795

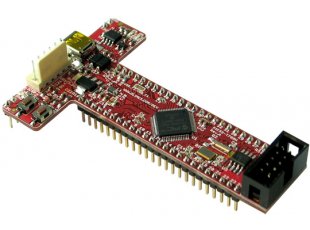

The special T-form of this board allow it to snap-on BREADBOARD-1 and to supply directly the VCC and GND to the Breadboard bus. It is perfect for fast breadboarding with Jumper Wires

FEATURES

• PIC32MX795F512H 80 Mhz microcontroller 512KB Flash 128KB RAM , 3x SPI, 4x I2C, USB OTG, 1MSPS ADC, PMP 80Mhz digital capture, 5 TIMERS/CCP, 53 GPIOs
• USB-OTG supporting both host and device function allowing the implementation of Google Android ADK
• UEXT connector which allows the connection of many existing modules with RF, ZIGBEE, GSM, GPS functionality
• Two LEDs
• One BUTTON
• Reset button
• A Mini USB connector is used which is common and used in most cell phones, so you do not have to buy additional cables
• All PIC ports are available on 0.1" connectors
• ICSP connector for programming with PIC-KIT3
• Dimensions 87x54 mm (3.4x2.12")

DOCUMENTS

• PIC32-T795 user's manual revision
• Duinomite User manual 1.03
• EU Declaration of conformity
• UKCA Declaration of conformity

HARDWARE

• PIC32-T795 Rev_A schematic in PDF format
• PIC32-T795 Rev_B schematic in PDF format
• PIC32-T795 schematic and board file Rev_B in Eagle format released under Creative Commons Attribution-Share Alike 3.0 United States License

SOFTWARE

• Pinguino IDE official web-site

• PINGUINO files - bootloader, pin definitions, blinking LEDs example



• DUINOMITE IDE files:
  • PINGUINO IDE original bootloader used during production
  • GitHub software


• General purpose examples:
  • Customer project with MOD-WIFI note that this requires a PIC32-compatible programmer


• MPIDE related:
  • PIC32-T795 complete library example for MPIDE MPIDE wiki article

• Arduino IDE related:
  • How to use PINGUINO boards with Arduino IDE, isntructions and required files at our Git page
  • OLIMEX board support package Arduino IDE installation
