SHIELD-LCD16x2

Arduino-compatible I2C/UART LCD shield with 16x2 display with backlight and 4 buttons, Arduino library and demo examples. Accepts commands by I2C(default) or UART.

FEATURES

• 2-row display with 16 character on each row
• Backlight
• 4 tactile buttons
• PIC16F722A microcontroller with built-in custom firmware
• I2C or UART control
• Fits Arduno and Arduino-like shield layout connectors
• Fits 0.1 inch breadboards
• Pads for ICSP, UEXT, GPIO access and additional quartz crystals are provided (no connectors)
• Power consumption: 0.15W
• Operating temperature 0-50C

DOCUMENTS

• Firmware description
• Display controller datasheet
• SHIELD-LCD16X2 European Declaration of Conformity
• SHIELD-LCD16x2 UKCA Declaration of Conformity

HARDWARE

• Board's schematic in PDF format

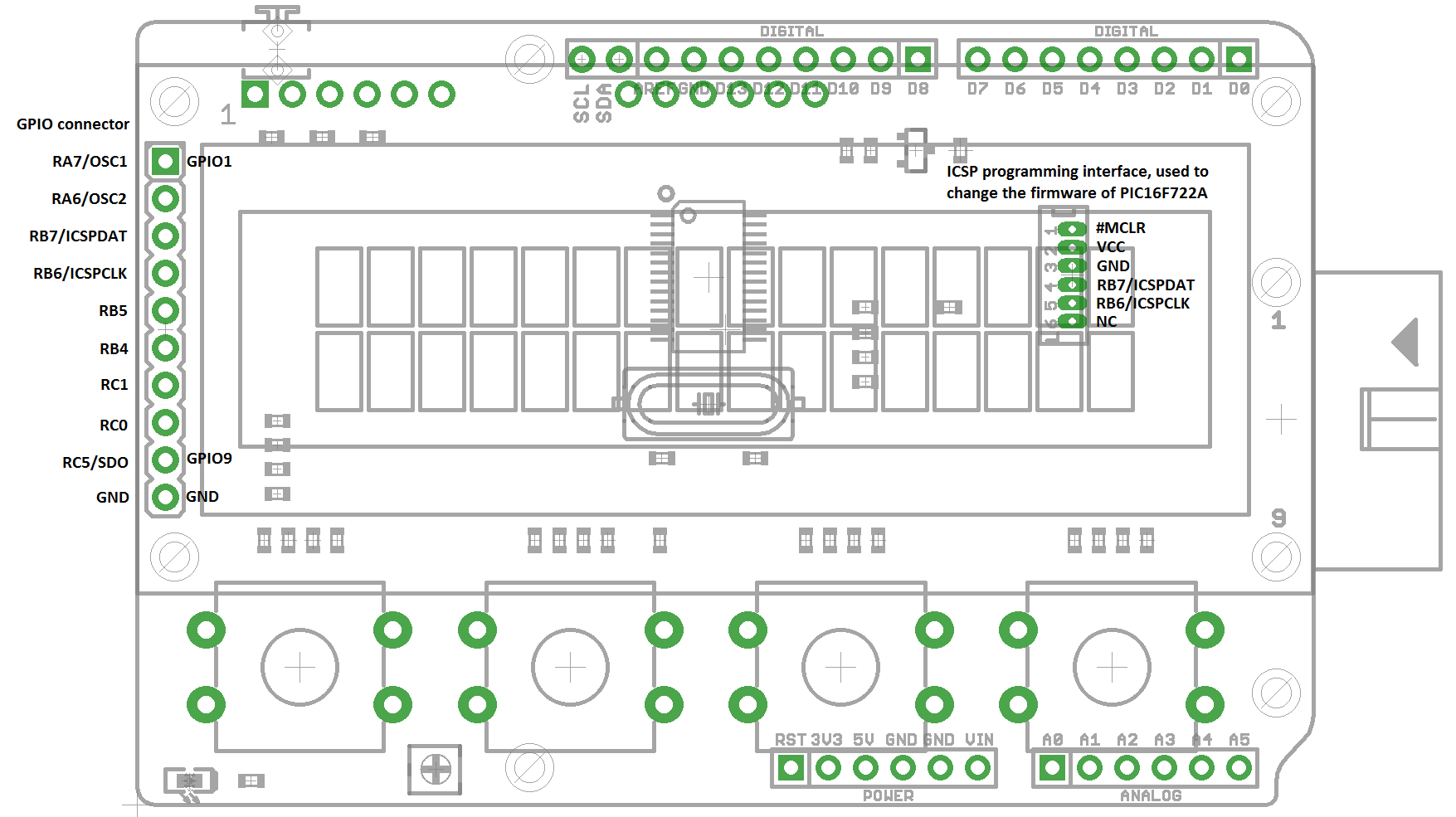

• ICSP programming layout
• Eagle design files

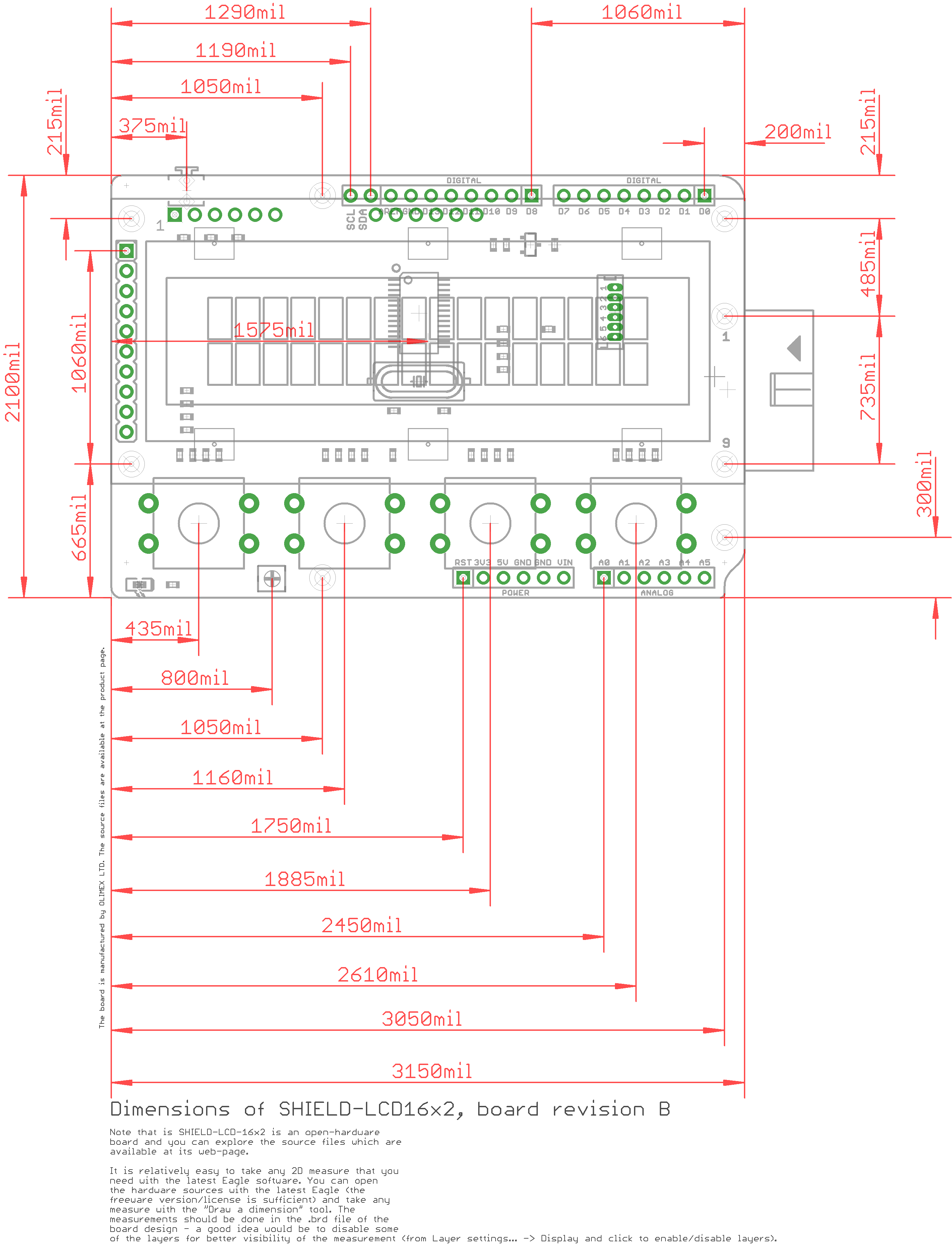

• Board dimensions

SOFTWARE

• default SHIELD-LCD16x2 firmware source code
• This shield is supported by Arudino IDE library for OLIMEXINO boards
• OLIMEXINO-328 + SHIELD-LCD16x2 - a library and set of demo examples
• OLIMEXINO-STM32 and SHIELD-LCD16x2 - refer to the readme inside of the archive
