ESP32-C6-EVB

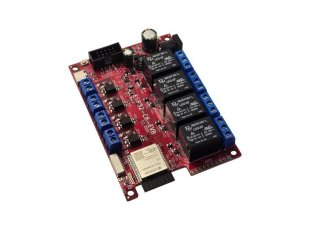

ESP32-C6-EVB - Open Source Hardware Board
ESP32-C6-EVB - Open Source Hardware Board ESP32-C6-EVB - Open Source Hardware Board
ESP32-C6-EVB board with WiFi6 Bluetooth5 LE and Zigbee connectivity for Matter and Smart Home Work
Price15.00 EUR
10 - 49 pcs14.25 EUR
50 - 10000 pcs13.50 EUR
In Stock
ESP32-C6-EVB is OSHW certified Open Source Hardware with UID BG0000116
ESP32-C6 is Espressif’s first Wi-Fi 6 (IEEE 802.11ax) SoC integrating 2.4 GHz Wi-Fi 6, Bluetooth 5 (LE) and the 802.15.4 low-rate wireless personal area network (LR-WPAN) protocol which is the basis for the Zigbee, ISA100.11a, WirelessHART, MiWi, 6LoWPAN, Thread and SNAP specifications.

FEATURES

  • ESP32-C6-WROOM-1-N4 module with 32-bit RISC-V single-core microprocessor, up to 160 MHz, Flash: 4MB, ROM: 320 KB, HP SRAM: 512 KB, LP SRAM: 16 KB
  • USB-C connector for powering, programming, and JTAG debugging
  • Power jack for optional external power (8-50)V DC
  • Four Relays: 10A/240VAC
  • Four opto-isolated inputs for DC voltage up to 30VDC
  • Two UEXT connectors (0.1" step one and JST one)
  • Extension GPIO connector
  • Reset button
  • User button
  • Wide range of power supply: 8-50VDC
  • Programming connector suitable for ESP-PROG
  • Four mount holes
  • Four rubber pads included

DOCUMENTS

HARDWARE

SOFTWARE

FAQ

  • ESP32-C6-EVB appears to connect and disconnect from USB and some of the relay LEDs appea to blink. Is this normal behavior?
  • This is the expected behavior when the board's memory is empty. Force the board in upload/bootloader mode manually:
    - Press and hold button BUT1
    - Press and release button RST1
    - Release button BUT1
  • What software should I use to program this board?
  • ESP-IDF
