ESP32-P4-DevKit

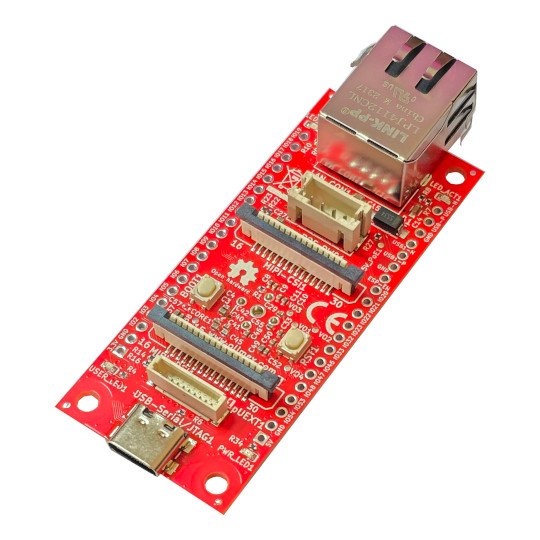

ESP32-P4-DevKit - Open Source Hardware Board
ESP32-P4-DevKit - Open Source Hardware Board ESP32-P4-DevKit - Open Source Hardware Board ESP32-P4-DevKit - Open Source Hardware Board
ESP32-P4 development board with Ethernet and USB JTAG
Price16.00 EUR
In Stock
ESP32-P4-DevKit is OSHW certified Open Source Hardware with UID BG000145
This item is available in limited quantities.
We allow only 1 pce per order.
Please allow more people to have access to this board.
Note that our site will not restrict you to put more than one in the basket, but we will ship you just one and this is what you will get no matter how many did you ordered and paid.

FEATURES

  • Espressif ESP32-P4NRW32 module:
    - Dual core 400Mhz RISC-V
    - 768KB RAM
    - 32MB PSRAM
  • SPI Flash 16MB
  • USB JTAG for programming and debugging
  • Ethernet MACPHY and connector with POE option via extension
  • Camera CSI interface
  • Display DSI interface
  • MicroSD card
  • Boot and Reset buttons
  • pUEXT connector
  • All GPIOs available on 0.1″ 2.54 mm 20 pin DIL headers
  • Four mounting holes 3.3mm diameter
  • Dimensions: (72 x 30)mm

DOCUMENTS

HARDWARE

SOFTWARE

ESP-IDF demos:

Arduino IDE support:

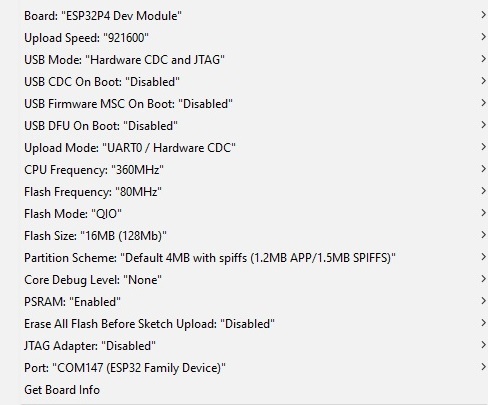

  • The module is supported in Arduino IDE ESP32 package since version 3.1.x, use these settings
