RT1010-Py

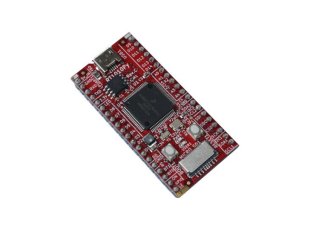

RT1010-Py - Open Source Hardware Board
RT1010-Py - Open Source Hardware Board RT1010-Py - Open Source Hardware Board RT1010-Py - Open Source Hardware Board
MicroPythoin development board with Cortex M7 processor running at 500Mhz
Price15.00 EUR
In Stock
RT1010Py is OSHW certified Open Source Hardware with UID BG0000101

If you use RP2040 but need speed, RT1010-Py is runing at x4 times the speed of  RP2040.

FEATURES

  • MIMXRT1011DAE5A running at 500Mhz
  • 128KB on board RAM
  • 2MB SPI Flash
  • Three UARTs
  • Two SPIs
  • Two I2Cs
  • I2S
  • Four PWM units with complementary outputs for push pull drivers
  • USB 2.0 OTG
  • Micro SD card connector
  • RTC with 32.768 kHz crystal
  • RESET button
  • BOOT button
  • UEXT connector with 3.3V, GND, I2C, SPI, and UART
  • Two GPIOs headers spaced at 22.86 mm (0.9”)
  • Dimensions: 53.34 x 25.4 mm ( 2.1 x 1”)

DOCUMENTS

HARDWARE

SOFTWARE
