MOD-RS232
MOD-RS232 is an RS232 level-shifter with UEXT connector. Using this module you can connect any OLIMEX board that has a UEXT to an RS232 device.
| Price | 5.95 EUR |
|---|---|
| 10 - 49 pcs | 5.36 EUR |
| 50 - 10000 pcs | 4.76 EUR |
FEATURES
- MAX3232CDR chip by Texas Instruments
- UEXT connector and a ribbon cable
- RS232 DB-9 connector
- RX-TX singal swap via SMD jumpers
- FR-4, 1.5 mm, red soldermask, white component print

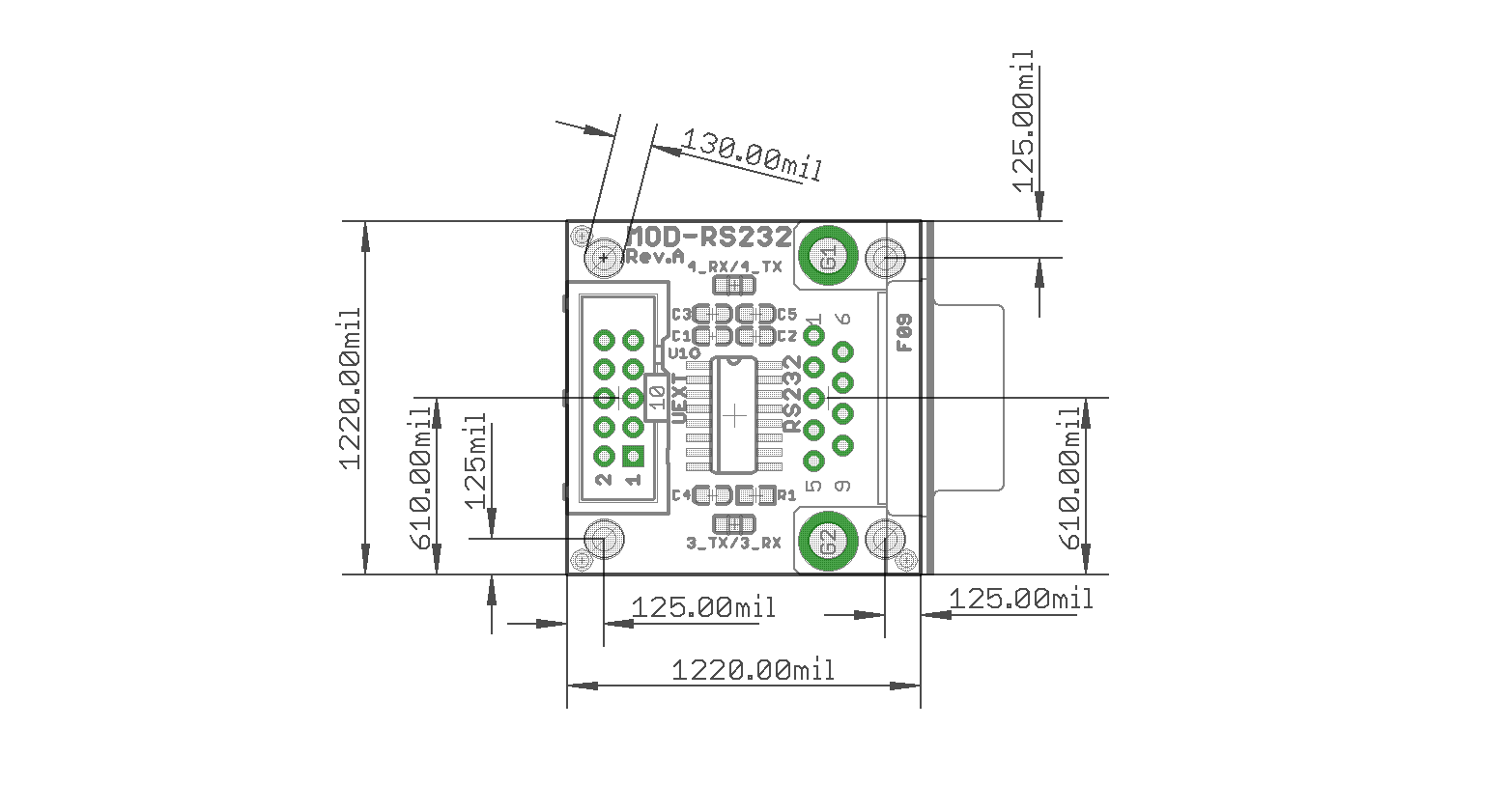

- Tiny size: PCB dimensions - 26 x 26 mm (1 x 1"); Nominal dimensions - 33 x 26(1.3 x 1)"
HARDWARE
- MOD-RS232 schematic in PDF format
- MOD-RS232 hardware sources for Eagle
