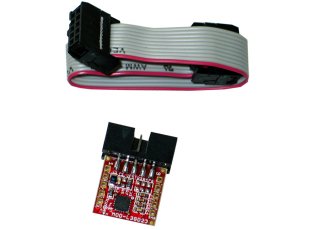

MOD-L3GD20
The MOD-L3GD20 has angular rate sensor (gyroscope) and UEXT connector
| Price | 12.95 EUR |
|---|---|
| 10 - 49 pcs | 11.66 EUR |
| 50 - 10000 pcs | 10.36 EUR |
The L3GD20 is a low-power three-axis angular rate sensor. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface. The board made by Olimex has I2C on the UEXT connector for easier connection with host boards.
FEATURES
- MEMS motion sensor: three-axis digital output gyroscope L3GD20 made by ST Microelectronics
- Three selectable full scales (250/500/2000 dps)
- UEXT connector
- I2C interface located on the UEXT connector
- SPI interface led to easy-to-access pin holes
- 16 bit-rate value data output
- 8-bit temperature data output
- Two digital output lines (interrupt and data ready)
- Integrated low- and high-pass filters with use selectable bandwidth
- Wide supply voltage: 2.4 V to 3.6 V
- Low voltage-compatible IOs (1.8 V)
- Embedded power-down and sleep mode
- Embedded temperature sensor
- Embedded FIFO
- High shock survivability
- Extended operating temperature range (-40°C to +85°C)
- Dimensions: 25.3x30.5mm (1.00x1.20)'' - maximum dimension including the connector
