MOD-TC-MK2-31855

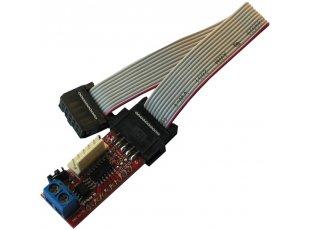

K-Type thermocouple interface board with PIC16F1503, MAX31855, UEXT and 0.1'' ICSP connector
| Price | 9.95 EUR |
|---|---|
| 10 - 49 pcs | 8.96 EUR |
| 50 - 10000 pcs | 7.96 EUR |
MOD-TC-MK2-31855 is an upgrade above MOD-TC in a lot of ways. It comes with firmware allowing easier I2C interfacing to host boards via simple UEXT connection. The firmware is available for tweaking. The MOD-TC-MK2-31855 now features MAX31855 for handling the thermocouple and PIC16F1503 for loading different firmware or storing information etc
FEATURES
- Thermocouple connector
- PIC16F1503
- ICSP connector 0.1'' step
- Jumper for easy change of the prebuilt I2C address
- UEXT connector
- 5 Analog GPIOs, 2 Digital GPIOs, 3.3V and GND are lead to a row of 9-pinholes for easier access
- FR-4, 1.5 mm, red soldermask, white component print
- PCB dimensions: 35.56 x 17.78mm (1.4 x 0.7")
DOCUMENTS
HARDWARE
SOFTWARE
- MOD-TC-MK2 firmware v4 source and explanation
- Demo of Olimage Linux and MOD-TC-MK2
- Demo of Arduino board OLIMEXINO-328 and MOD-TC-MK2 - for Arduino IDE, library and examples
- Demo of ESP8266 boards and MOD-TC-MK2 and ESP8266 boards - for Arduino IDE, library and examples
-
Older demo projects, customer demo projects and more might be found at the wiki page: MOD-TC-MK2-31855 article
