STMP157-BASE-SOM-EVB

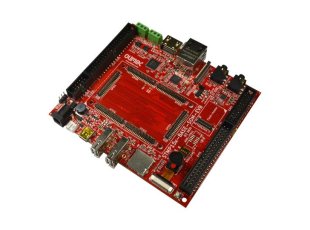

STMP157-BASE-SOM-EVB - Open Source Hardware Board
STMP157-BASE-SOM-EVB - Open Source Hardware Board STMP157-BASE-SOM-EVB - Open Source Hardware Board STMP157-BASE-SOM-EVB - Open Source Hardware Board STMP157-BASE-SOM-EVB - Open Source Hardware Board
Evaluation board for STMP157-BASE-SOM
Price30.00 EUR
In Stock

STMP157-BASE-SOM-EVB is evaluation board for STMP157-BASE-SOM and exposes all features of the SOM module and can be used as reference design.

Note that STMP157-BASE-SOM-EVB does not come with STMP157-BASE-SOM-EXT module which has to be purchased separaterly!

FEATURES

  • 6 connectors for STMP157-BASE-SOM
  • Two USB host 2.0
  • USB-OTG
  • Two CAN drivers
  • HDMI output
  • CSI OV2640-120 2Mpixel Camera
  • Gigabit Ethernet
  • MIPI LCD connector
  • Microphone 3.5mm connector
  • Headphones 3.5mm connector
  • RESET button
  • RGB LCD connector compatible with LCD-OLinuXino-5CTS, LCD-OLinuXino-7.0CTS, LCD-OLinuXino-10CTS
  • UEXT connector
  • EXT1, EXT2 connectors
  • PWR jack connector (5V DC required)
  • Li-Po charger and battery connector
  • PWR LED
  • DBG connector
  • Flash module connector
  • Boot configuration slide switch
  • SD-card
  • Optional JTAG connector (not populated)
  • Dimensions: 122 x 106 mm
